Renogy Wiring and Mounting Kit For Two Solar Panels Setup
- Authorised Dealer – We’re officially authorised to sell every brand on our site. That means genuine products and full manufacturer warranties—no exceptions.
- Free Shipping – Get fast and free shipping on every order, anywhere in the U.K.
- Top-Rated Customer Support – Need help? Our friendly, U.K.-based team is here to support you before and after your purchase.
- Operated by the team behind buildthepower.com – trusted by thousands of US customers.
Guaranteed Secure Checkout
The photovoltaic accessories and cable kit comes with all the cables and accessories you need to connect two 100 W renogy panel and contoller to your battery bank. Renogy tray cables offer easy connection between batteries and charge controllers. They are designed with specialized terminal rings for battery connection and exposed wire ends for fast connection to a charge controller. Adapter kit cables allow connection between solar panels and charge controllers, featuring waterproof solar connectors on module ends and exposed wire for charge controller terminal connection. The Renogy Z-Bracket Mount System can be used to easily mount and install a single solar panel.
Durable Design
- Renogy's cables are TUV tested, UV light resistant and waterproof.
- Light weight aluminum brackets
Scalable Kit
- Expand system by installing more modules and /or wiring.
Flexible and Effortless PV
- Ready to connect any Renogy accessory to a 200W module or PV system.
- Easily expand your system using additional wiring or mounting brackets.
Perfect for DIY Off Grid Installation:
- Easy installation and DIY friendly.
- The kit offers all components required for Renogy’s small scale photovoltaic system installation.
- This kit allows the customer the flexibility to expand their system as needed and is built for 200W systems.
Includes
Renogy solar tray cables x 1Specifications

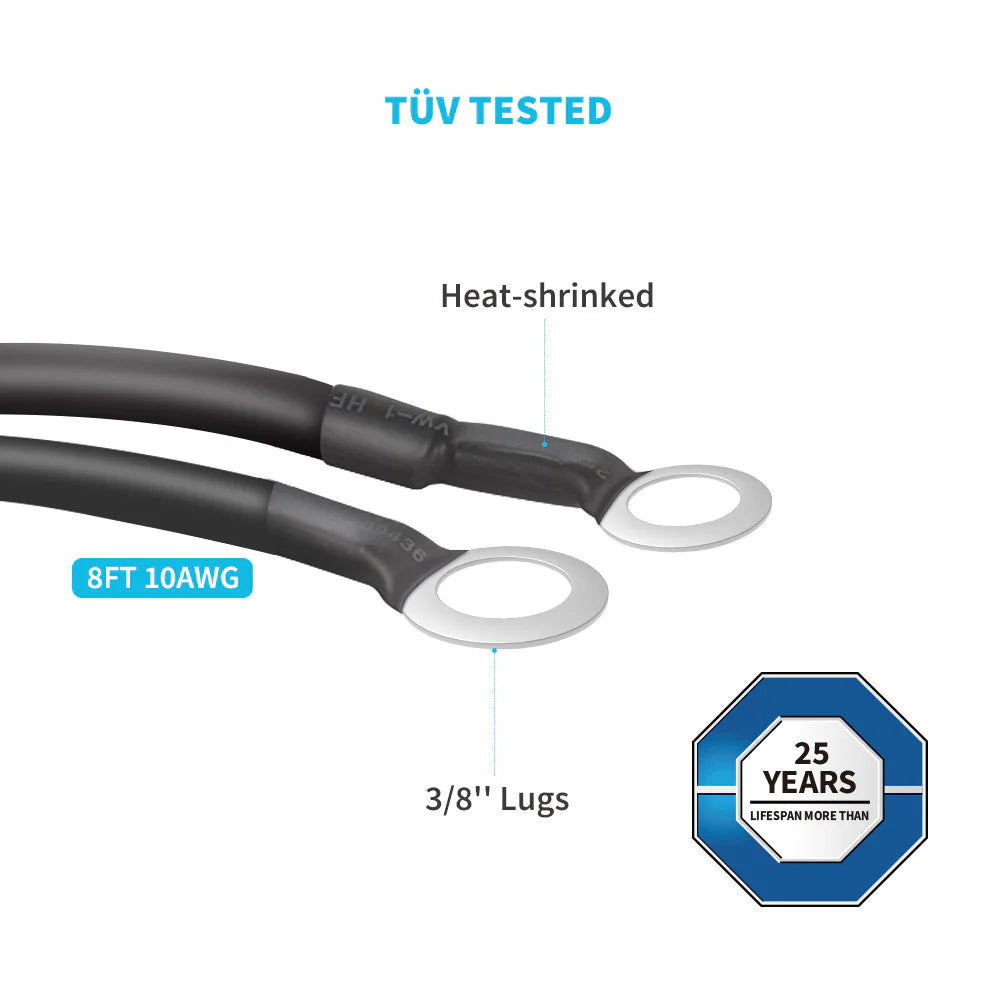

Renogy 8FT 10AWG Solar Tray Cables
Length: 8ft
AWG: 10
Temperature: -40°F to +185°F
Rating Voltage: 600/1000V

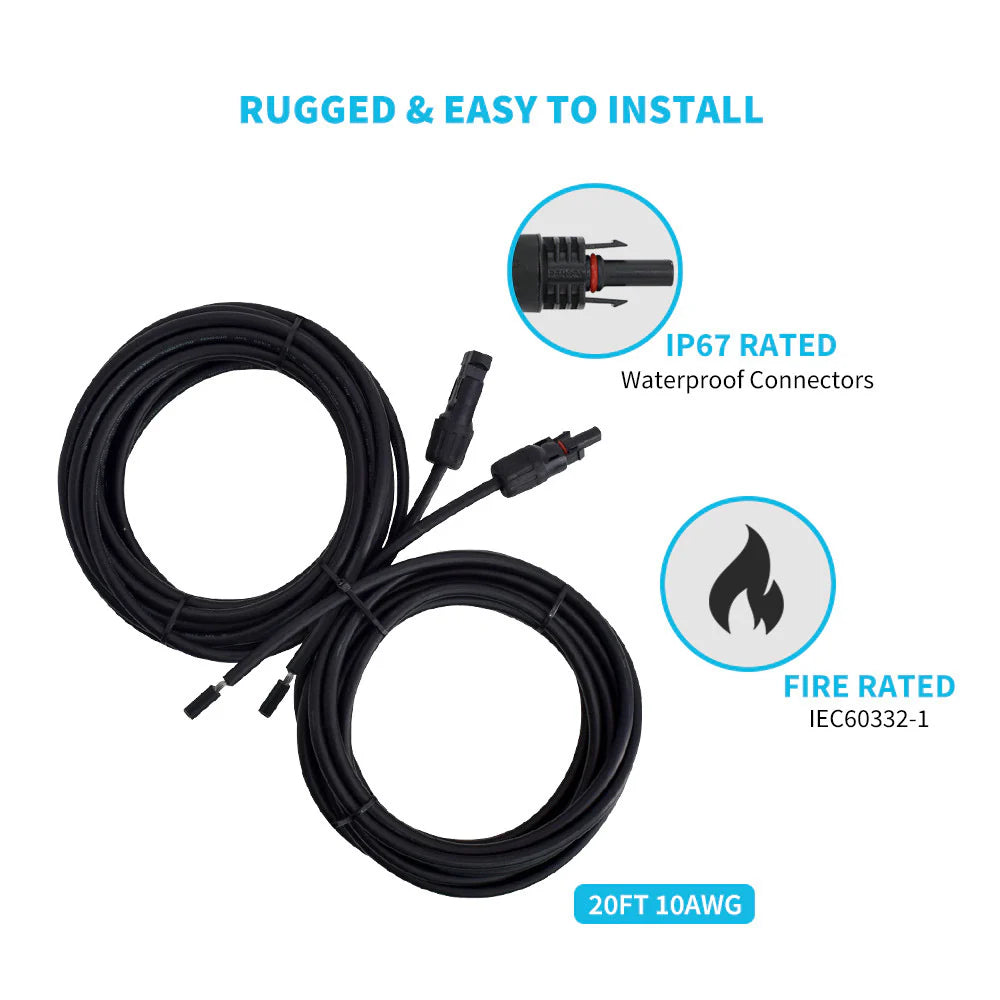

Renogy 20FT 10AWG Solar Adaptor Kit
Length: 20ft
AWG: 10
Temperature: -40°F to +185°F
Rating Voltage: 600/1000V
Normal Cross Sectional Area of the Conductor (mm2): 6.0
Diameter of Wires in Conductor (mm): 3.02±0.08
Min. Wall Thickness of Insulation (mm): 0.85
Min. Wall Thickness of Sheath (mm): 1.08
Number of Wires in Conductor: 84
IP 65 Protection

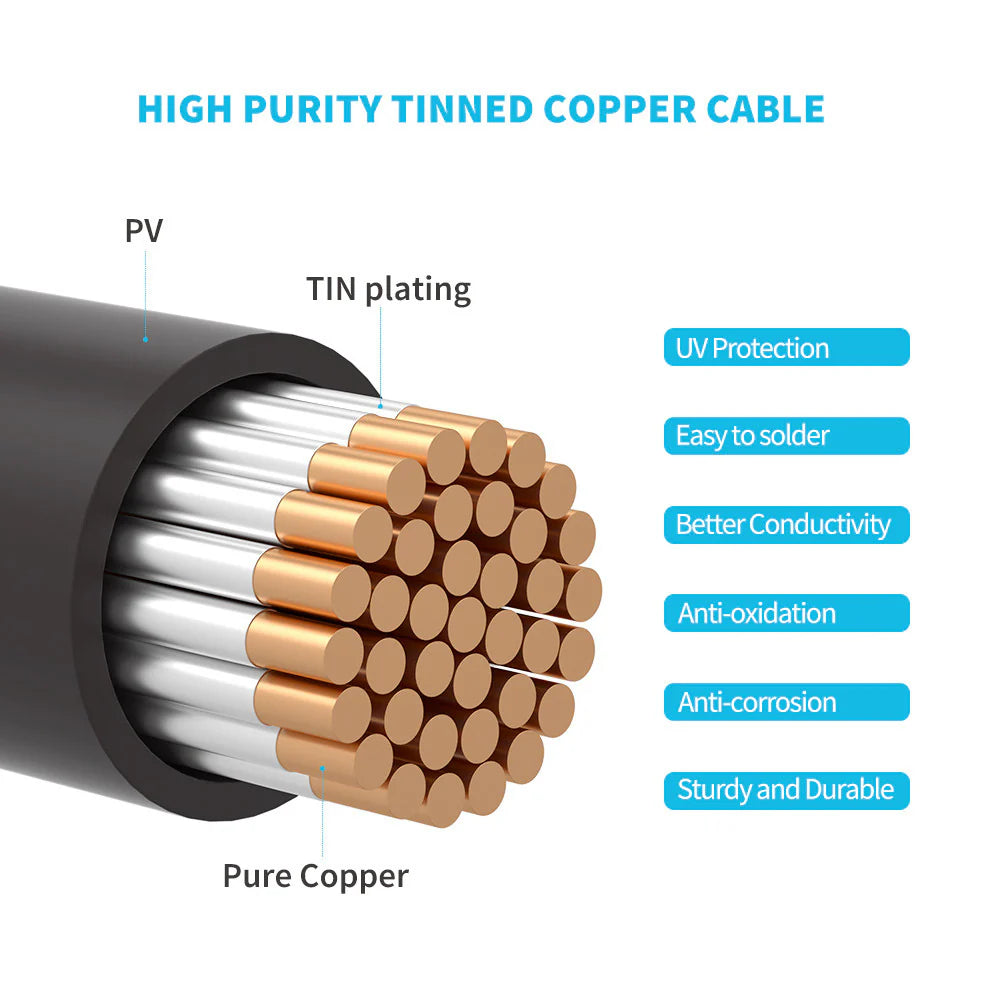

Conductor: Tinned copper wire

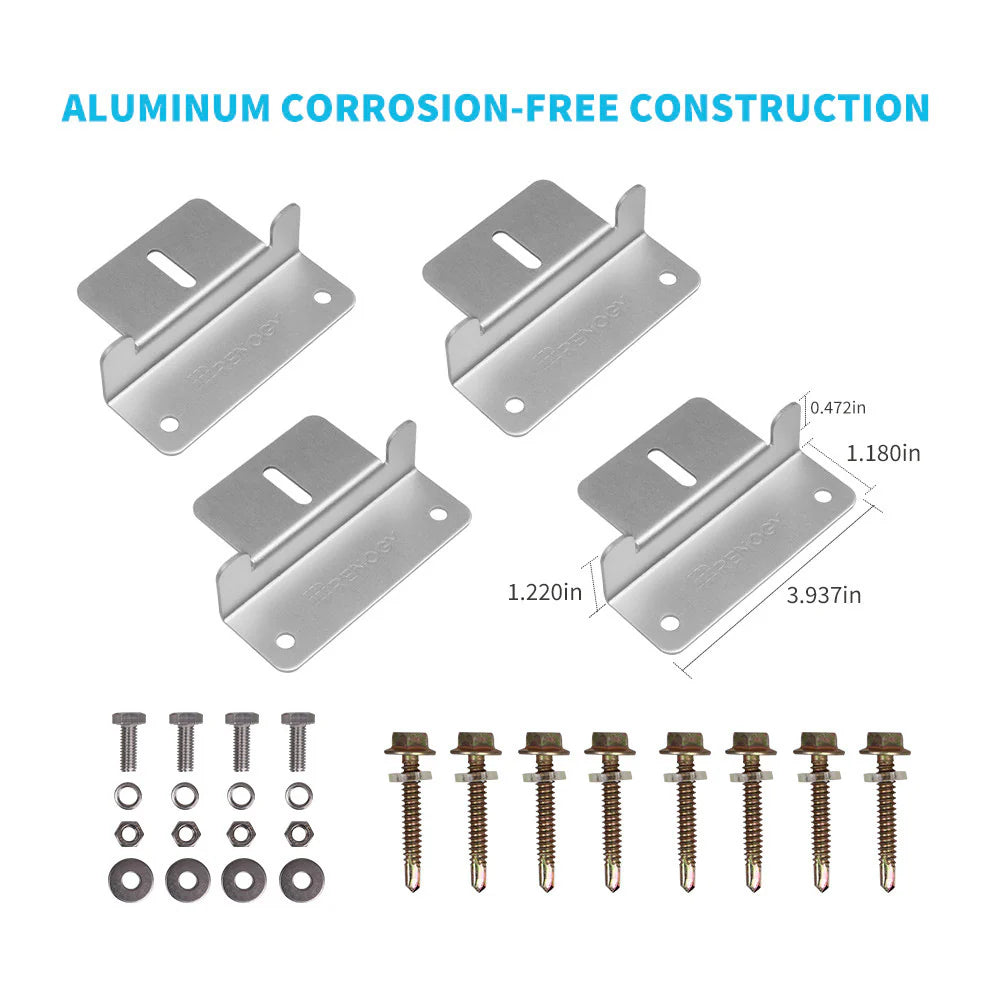

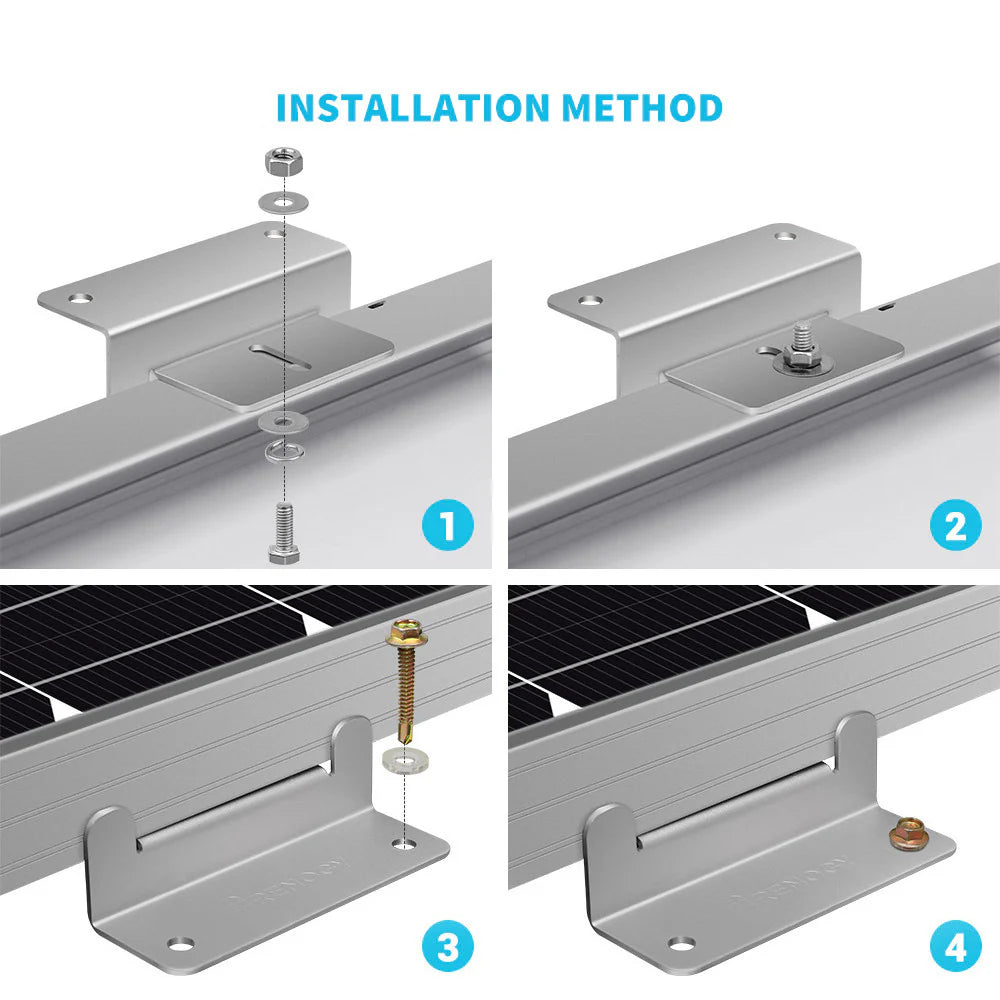

Renogy Solar Panel Mounting Z Bracket
Four Z Shape Solar Panel Brackets
Four M6-16 Hex Cap Bolt
Four M6 Split Lock Washer
Eight M6 Flat Washer
Four M6 Hexagonal Nut
Eight #11 Self-Drilling Cap Screw and Plastic Retaining Ring

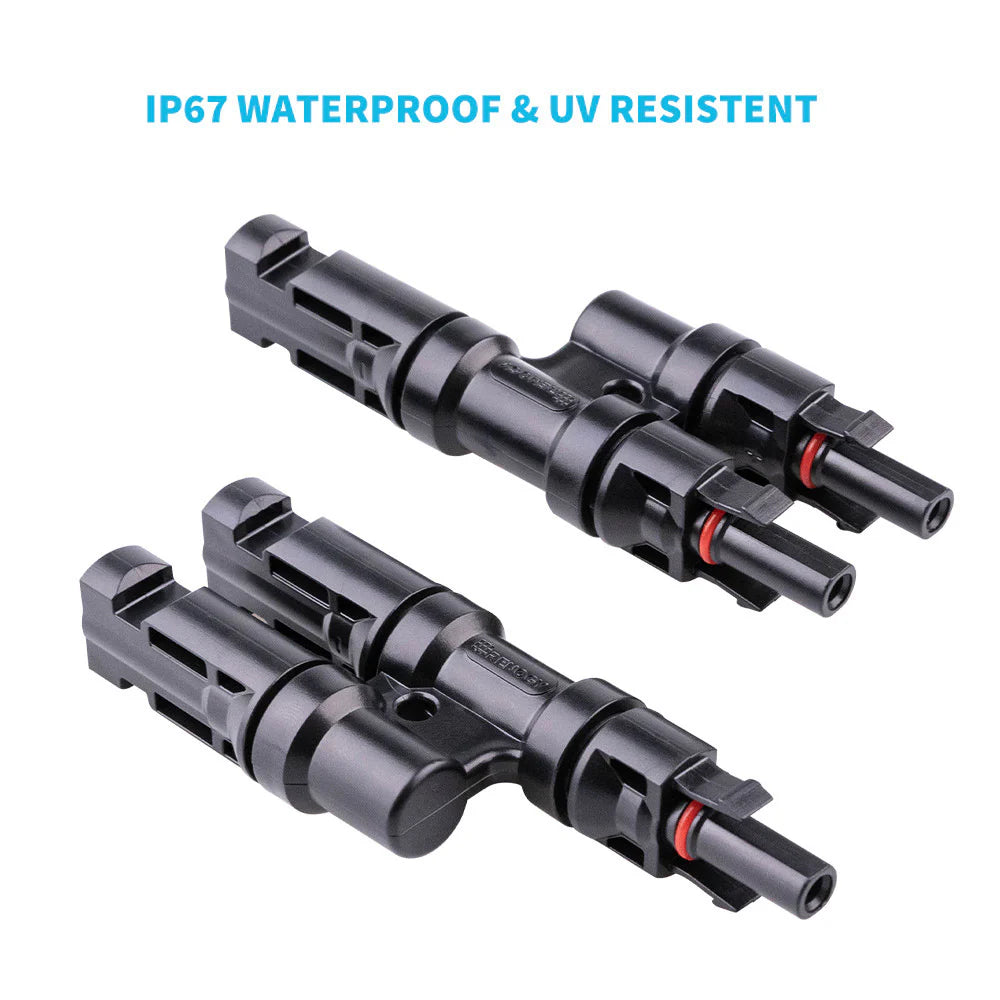

Renogy Solar Panel MC4 Branch Connectors (Pair)
Withstanding voltage: 1000V DC(TUV), 600V(UL)
Contact Resistance: 1m
Protection Class: Class II
Temperature: -40°F to +194°F
Protection Degree: IP67, mated
Eight #11 Self-Drilling Cap Screw and Plastic Retaining Ring
