Renogy 10A/16A/32A/50A/63A 1P DC Miniature Circuit Breaker
- Authorised Dealer – We’re officially authorised to sell every brand on our site. That means genuine products and full manufacturer warranties—no exceptions.
- Free Shipping – Get fast and free shipping on every order, anywhere in the U.K.
- Top-Rated Customer Support – Need help? Our friendly, U.K.-based team is here to support you before and after your purchase.
- Operated by the team behind buildthepower.com – trusted by thousands of US customers.
Choose Model
Guaranteed Secure Checkout
The Suntree DC Miniature Circuit Breaker is designed to protect DC electrical installations against overloads and short circuits, with both the thermal and magnetic tripping mechanism equipped. Once a fault is detected, the circuit breaker automatically switches off the electrical circuit to prevent damage to wires and avoid the risk of fire. The circuit breaker can also be manually opened under the full rated load without any damage when electrical maintenance needs to be performed. Engineered for reversible connection, the circuit breaker is allowed to be wired in either direction and functions under bidirectional current. The built-in indicator window helps identify the contact position of the circuit breaker at a glance. The buckle design enables easy installation on the standard DIN rail.
- DOUBLE SECURITY
- Equipped with both the thermal and magnetic tripping mechanism for reliability and safety.
- SAFE TO USE

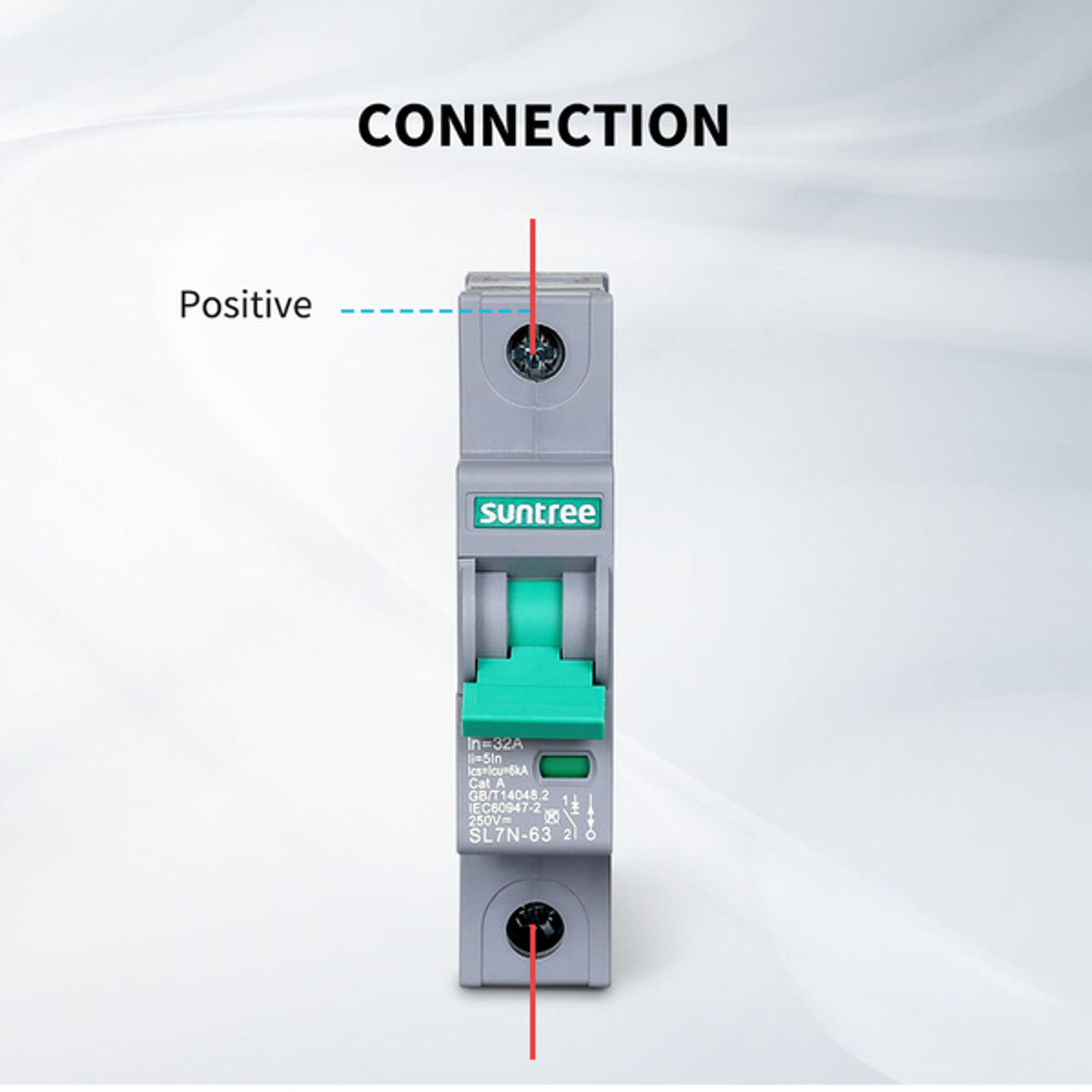

- Offers reversible connection for worry-free wiring and bidirectional protection.
- DURABLE FOR USE
- After the circuit breakers is disconnected, only reset is needed and there will be no damage.
- EASY TO SEE

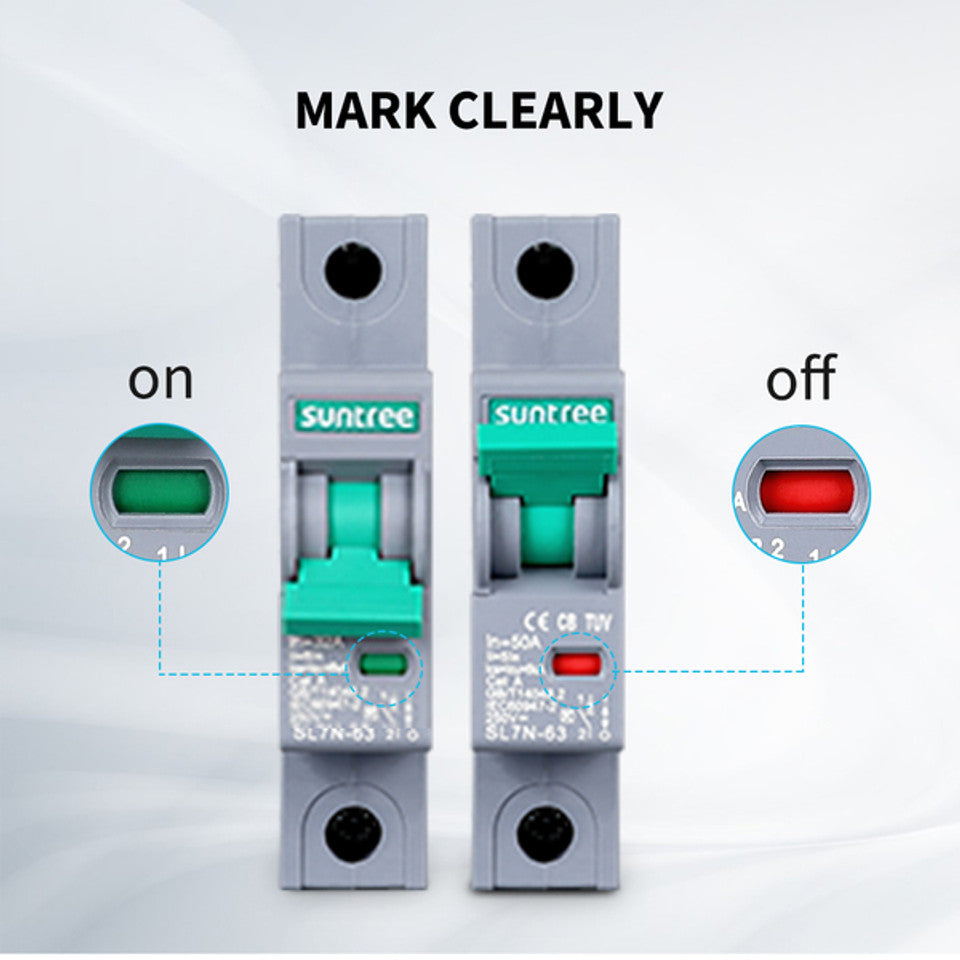

- Built-in indicator window helps identify the contact position.
- QUICK TO INSTALL
- Easily install on the standard DIN rail with the buckle design.
Specifications
10A/16A/32A/50A/63A 1P DC MINIATURE CIRCUIT BREAKER
Rated Insulation Voltage: 1250V
Rated Operating Voltage: 250V
Rated Frame Current: 63A

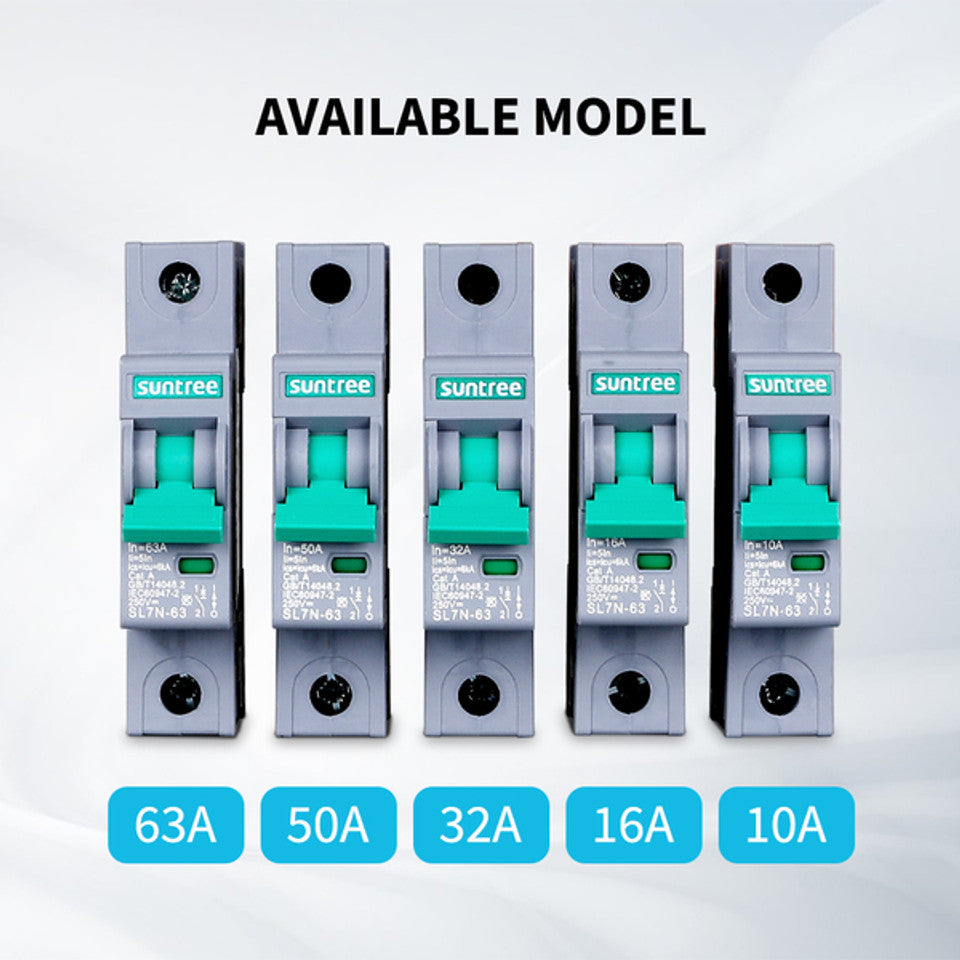

Rated Current: 10A/16A/32A/50A/63A
Number of Poles: 1
Operating Short-Circuit Breaking Capacity: 6KA
Ultimate Short-Circuit Breaking Capacity: 6kA
Rated Impulse Withstand Voltage: 6KV
Rated Non-Tripping Current: 10.5A/16.8A/33.6A/52.5A/66.15A (≥1h)
Rated Tripping Current: 13A/20.8A/41.6A/65A/81.9A (<1h)
Rated Instantaneous Tripping Current: 60A/96A/192A/300A/378A (<0.1s)

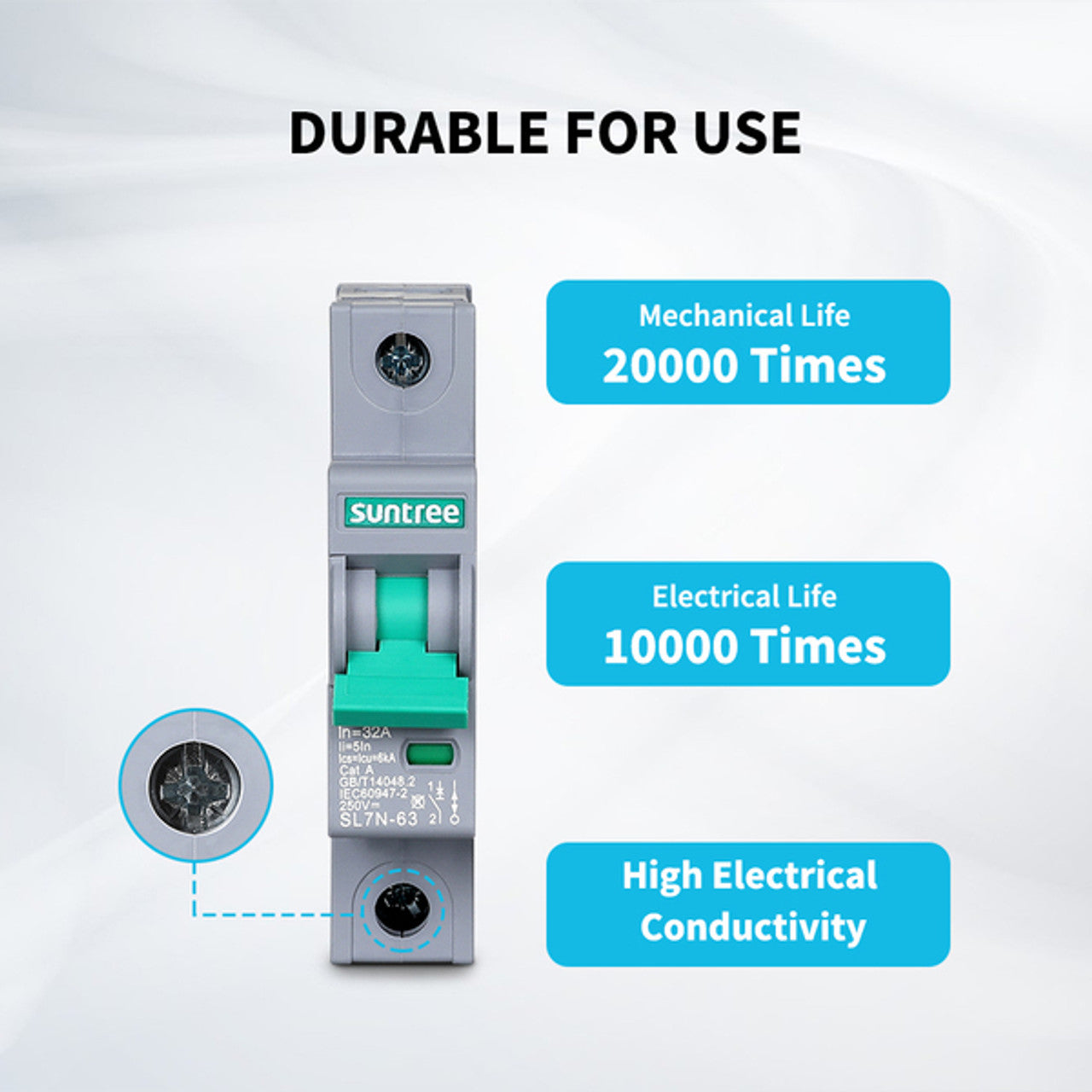

Mechanical Life: 20000 Times
Electrical Life: 10000 Times (<125VDC)
Trip Mechanism: Thermal-Magnetic
Protection Rating: IP20
Damp Heat Resistance: Type 2
Operating Relative Humidity: ≤95%
Operating Temperature Range: -22℉~158℉ (-30℃~70℃)
Storage Temperature Range: -40℉~185℉ (-40℃~85℃)
Installation Method: DIN Rail
Conductor Size: 14 AWG~4 AWG
Recommended Terminal Torque: 17.7 inch·lbs~20.4 inch·lbs (2 N·m~2.3 N·m)

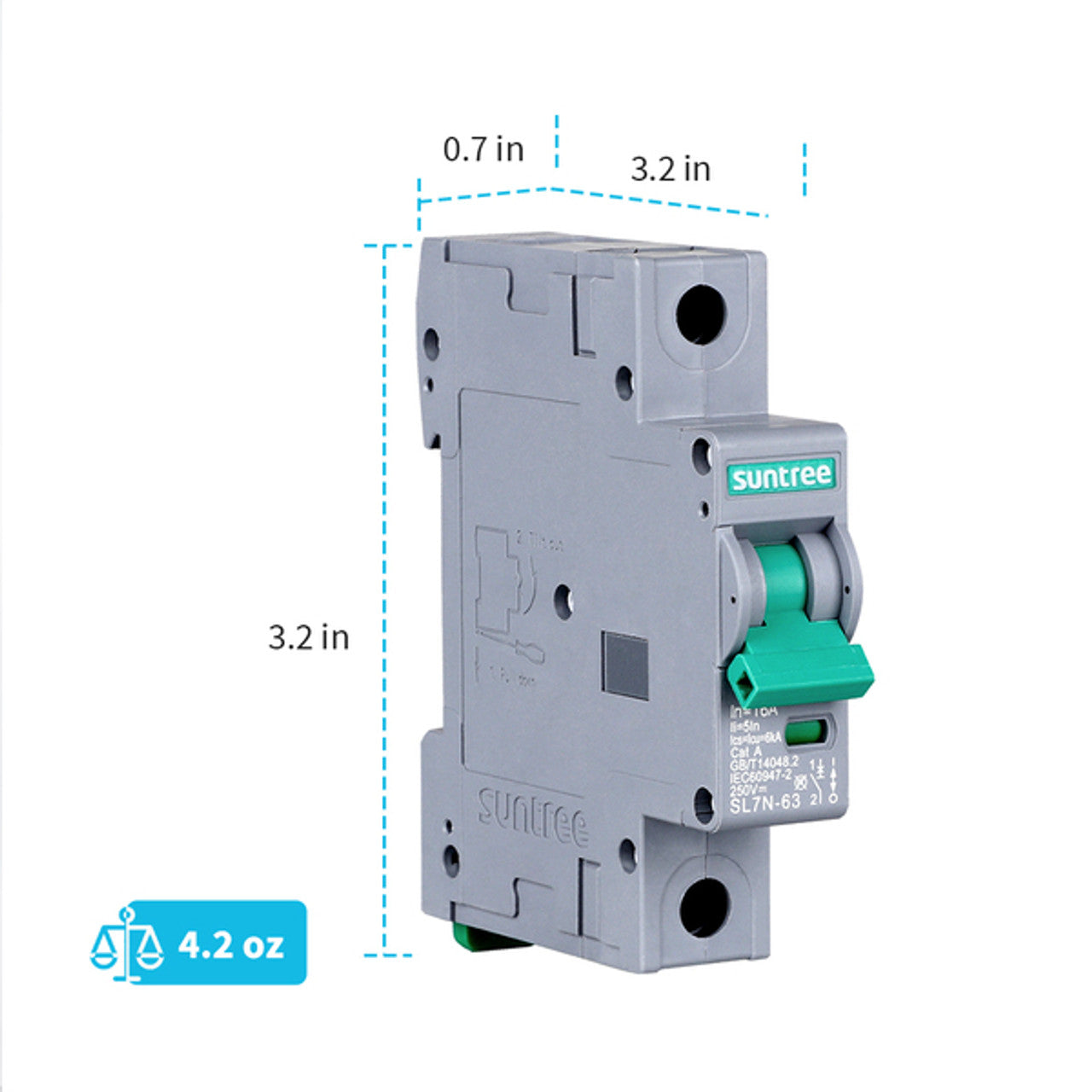

Dimension: 3.2 x 3.0 x 0.7 in (82 x 76 x 18 mm)
Weight: 4.2 oz (120 g)
Material and Workmanship Warranty: 1.5 years
