Renogy 500A Battery Monitor with Shunt/Sampler (Coulomb meter)
- Authorised Dealer – We’re officially authorised to sell every brand on our site. That means genuine products and full manufacturer warranties—no exceptions.
- Free Shipping – Get fast and free shipping on every order, anywhere in the U.K.
- Top-Rated Customer Support – Need help? Our friendly, U.K.-based team is here to support you before and after your purchase.
- Operated by the team behind buildthepower.com – trusted by thousands of US customers.
Guaranteed Secure Checkout
The Renogy Battery Monitor is designed to monitor the performance of most battery types. Its high-precision measurements will eliminate the guesswork from battery usage and enhance your battery bank's performance and lifespan.

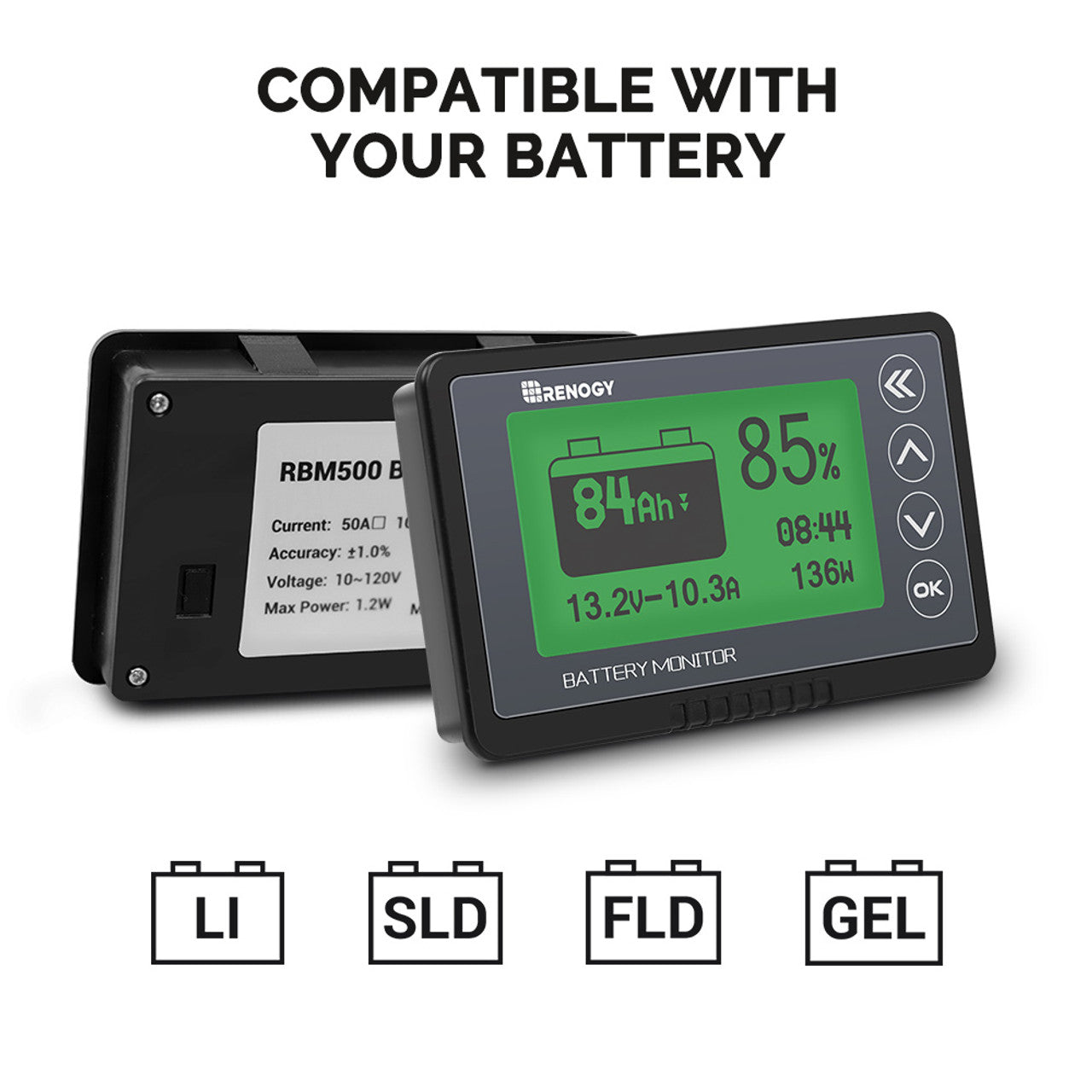

It is a universal battery monitor that you can use with voltage ranging from 10V to 120V and up to 500A.
LOW POWER CONSUMPTION DESIGN
The backlight will automatically shut down when the charging current is ＜100mA and only 1 mA Standby Dissipation. This battery monitor is equipped with data storage capacity. It automatically saves the last testing data when its power is off.
PROTECT YOUR BATTERY
This monitor gives you high precision current detection and accurate battery state of charge. You can also set an alarm for high or low current voltage. When the alarm is activated, the backlight and voltage value will be shown on the screen to alert you on what to do when you reach the cut-off voltage.

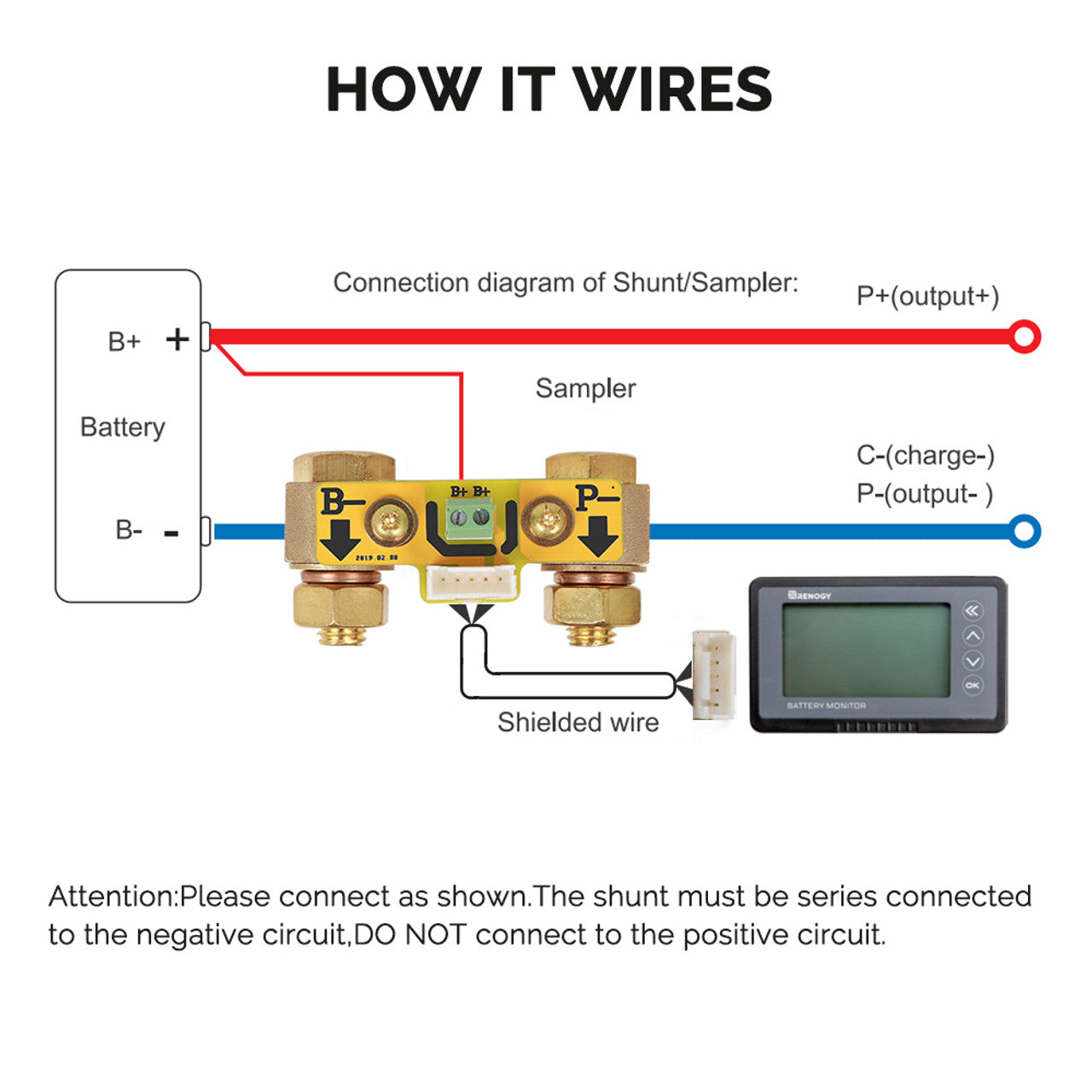

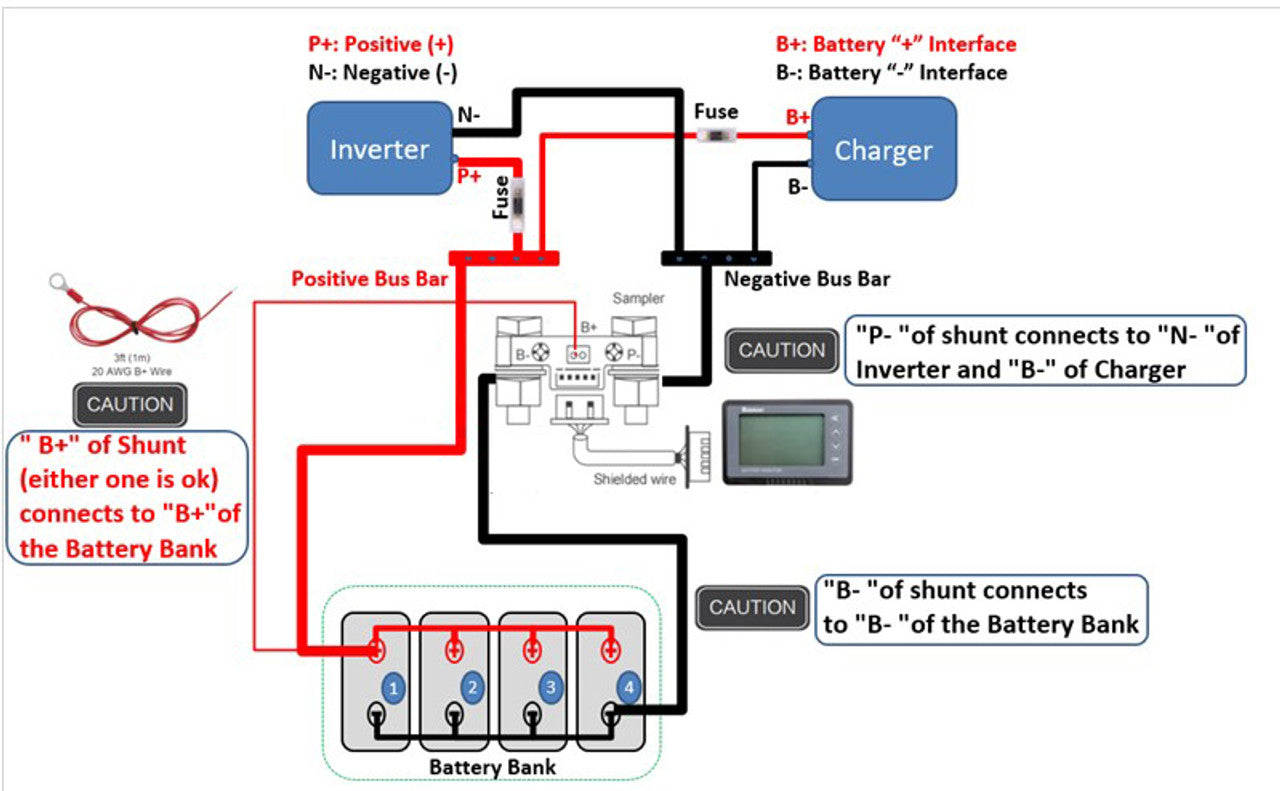

EASY TO INSTALL

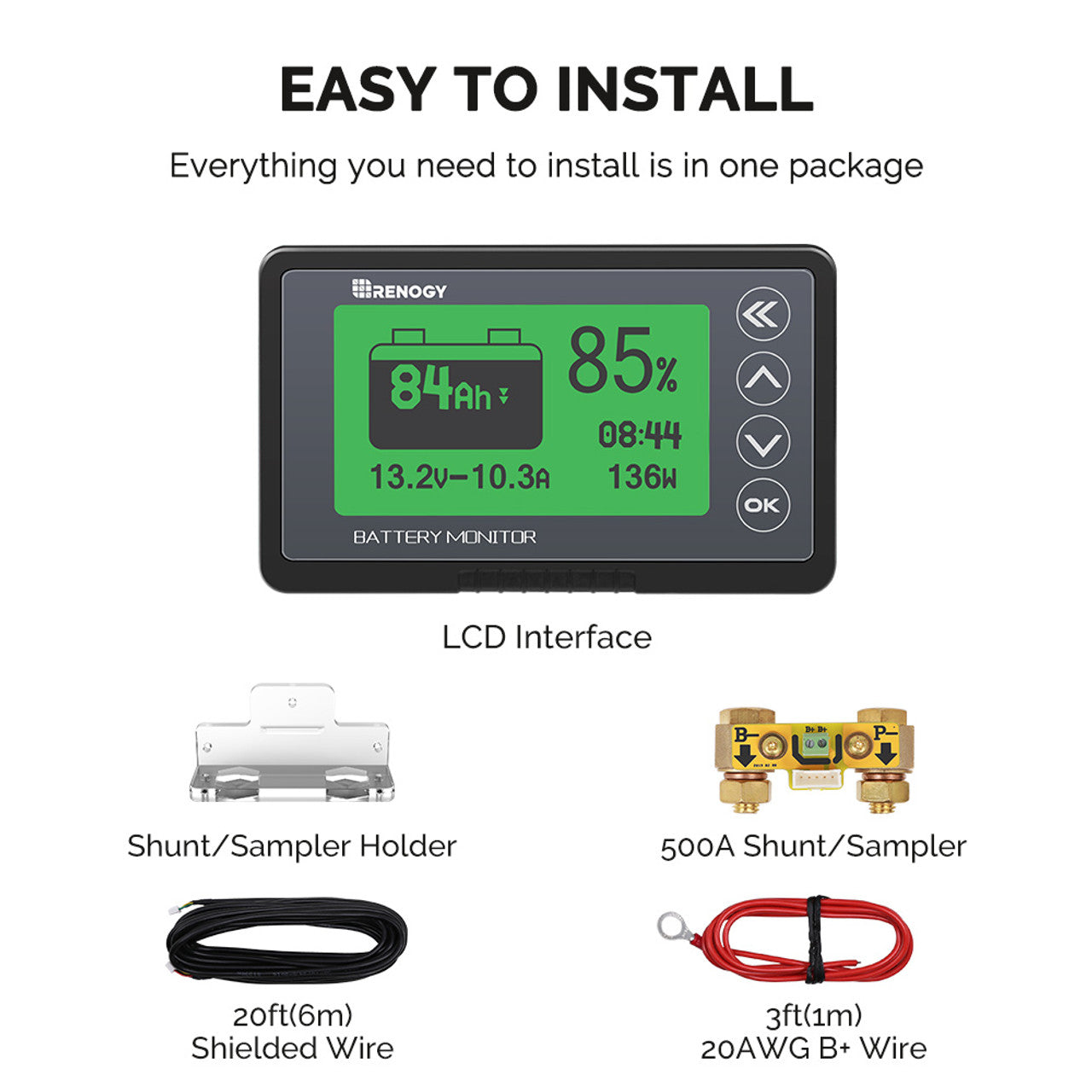

The package includes the LCD interface, 500A shunt, transparent shunt holder, 20 ft shielded wire, and B+ wire. The shunt holder makes it very convenient to mount the shunt while the long shielded wire allows you to monitor the status of your battery from a distance.
The Renogy Battery Monitor can't be exposed to the sun for a long time or in the environment with large amounts of ultraviolet radiation when using or storing in winter (＜ -10℃) and summer (＞60℃) otherwise, the life span of the LCD will be shortened.
Includes
LCD Interface x 1
500A Shunt/Sampler x 1
Shielded Wire x 1
B+ Wire x 1
Shunt Holder x 1
Specifications
| 500A Battery Monitor with Shunt | |||
|---|---|---|---|
| Operation Specifications | Operation Specifications | ||
| Working Voltagel | 10-120V | Compatible Battery |
Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid |
| Standby Dissipation | 1-2mA | Display |
LCD with Green Backlight brightness is adjustable |
| Working Dissipation | 10-15mA | Capacity Accuracy | ±1% |
| Preset capacity value | 0.1-9999.0 AH | Current Accuracy | ±1% |
| Backlight on current (>50A) | 100mA | Voltage Accuracy | ±1% |
| Mechanical Specifications | Certifications | ||
| Shielded Wire Length | 20 ft/6 m | ROHS | YES |
| Weight (LCD Interface) | 2.6 oz / 75 g | Warranty | |

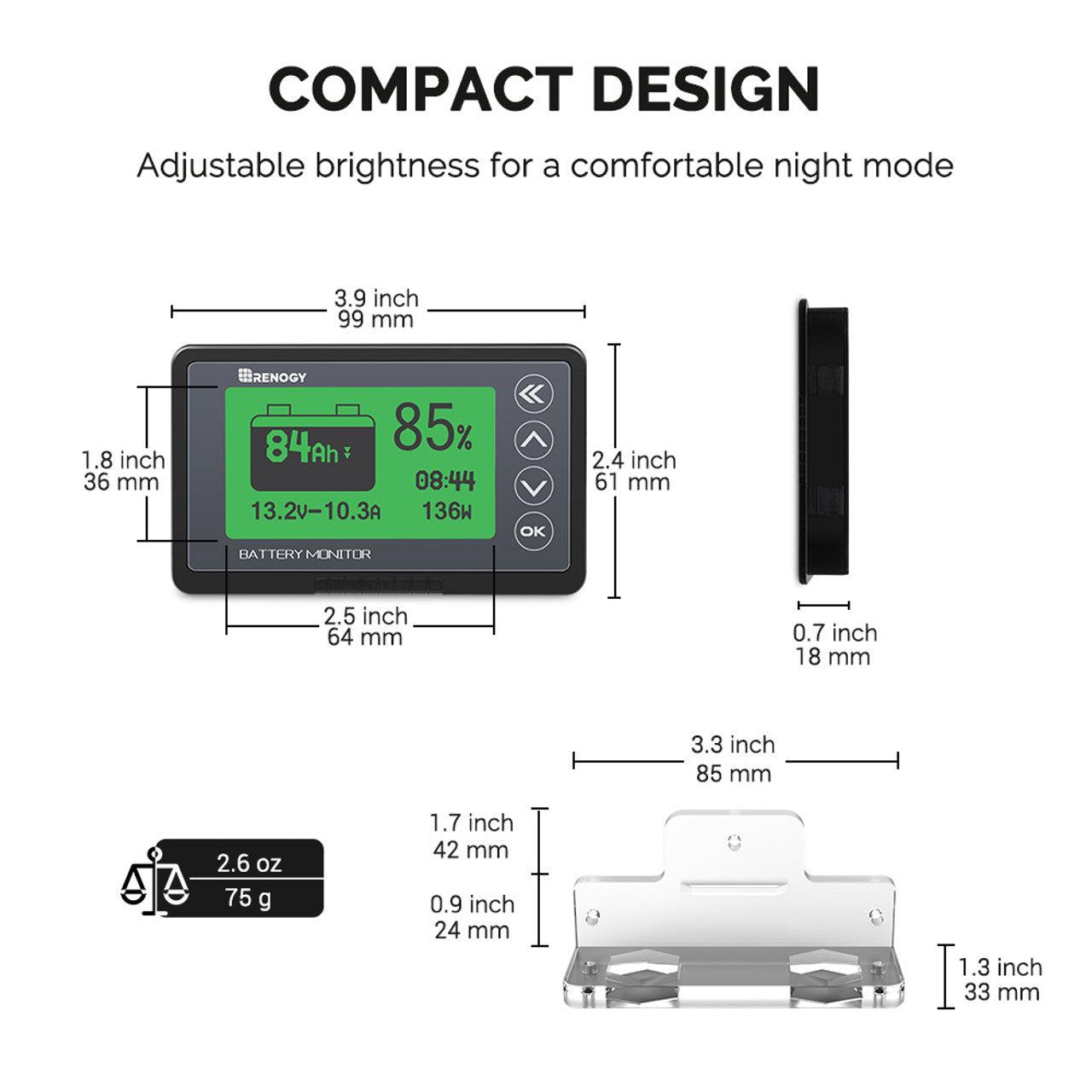

| Size (LCD Interface) | 3.9 x 2.4 x 0.7 in / 99 x 61 x 18 mm | Material Warranty | 1 Year |
| B+ Wire Length | 3 ft/1 m | ||
| Temperature range | 14-140°F(-10-60°C) | ||
