Hyundai Petrol 3.5kW Underslung Vehicle Mounted RVi Generator, Pure Sine Wave Output, Includes Fittings & Panel

£2,699.99
  • Authorised Dealer – We’re officially authorised to sell every brand on our site. That means genuine products and full manufacturer warranties—no exceptions.
  • Free Shipping – Get fast and free shipping on every order, anywhere in the U.K.
  • Top-Rated Customer Support – Need help? Our friendly, U.K.-based team is here to support you before and after your purchase.
  • Operated by the team behind buildthepower.com – trusted by thousands of US customers.

Guaranteed Secure Checkout

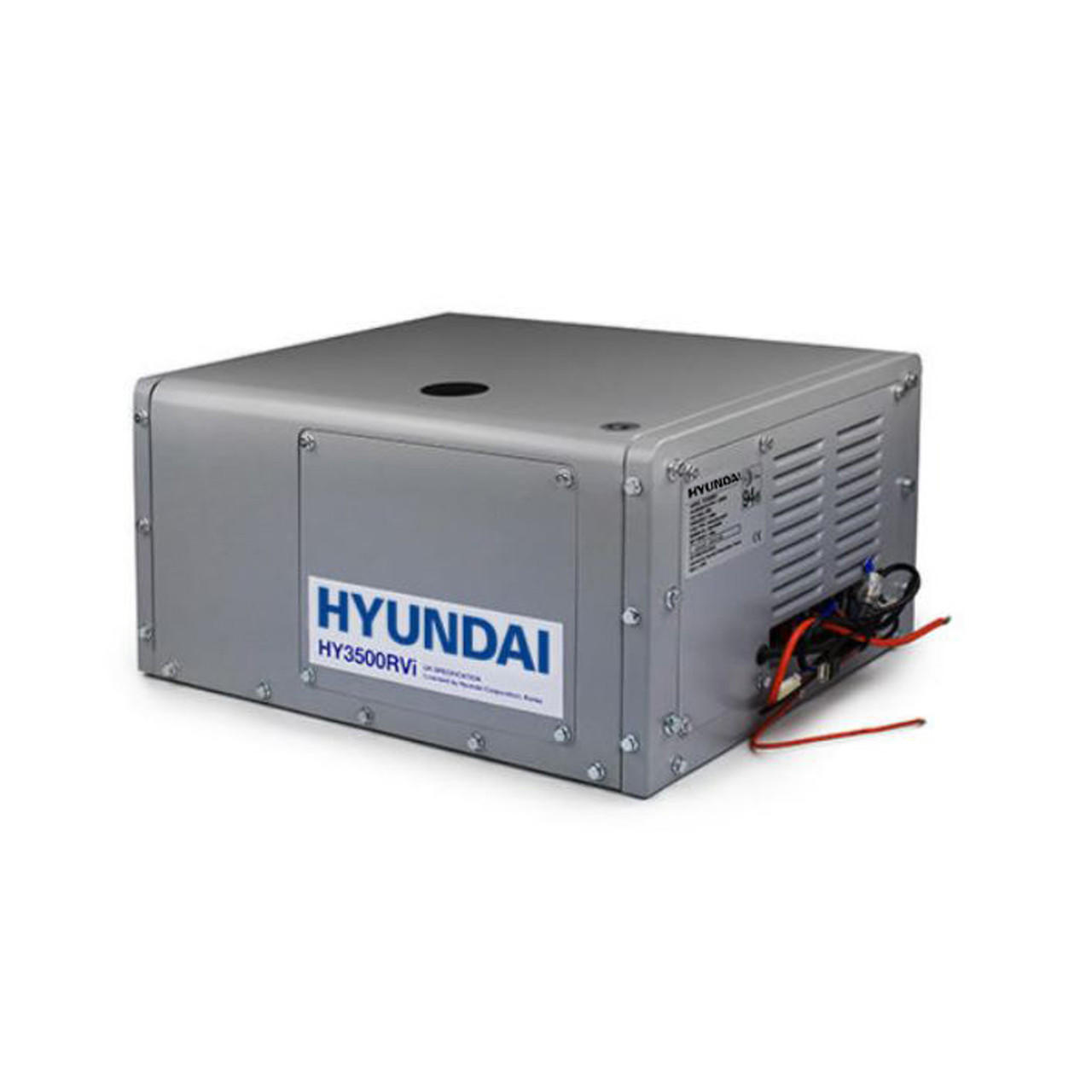

      Hyundai 3.5kw Underslung Inverter Generator

      The Hyundai HY3500RVi is an inverter generator designed to be mounted underneath a RV motorhome, horsebox, truck, or camper. It can be permanently mounted to the chassis or mounted within a locker on slide out mounts.

      IC225 4-stroke OHV Petrol Engine

      Powered by the Hyundai IC225 4-stroke OHV petrol engine with electric start, electronic ignition and low oil level protection, the HY3500RVI has an impressive maximum output of 3500w / 3.5kW, and continuous power rating of 3000w / 3kW.

      Tri-fan System To Increase Cooling And Reduce Noise

      The air-cooled engine draws in cool air around the sides of the canopy through a Tri-fan system to increase cooling and reduce noise and the hot air and exhaust fumes are directed downwards and expelled underneath the vehicle. The generator comes with an additional external exhaust silencer to be mounted underneath the vehicle to further reduce noise levels.

      24 Litre Petrol Tank

      The external 24 litre petrol tank comes with mounting brackets and a filler tube and fittings to fit the filler in the outside panel of the vehicle. It incorporates a fuel pump and fuel level sender unit.This will give a run time of up to 24 hours with a light load and 12 hours under full load.

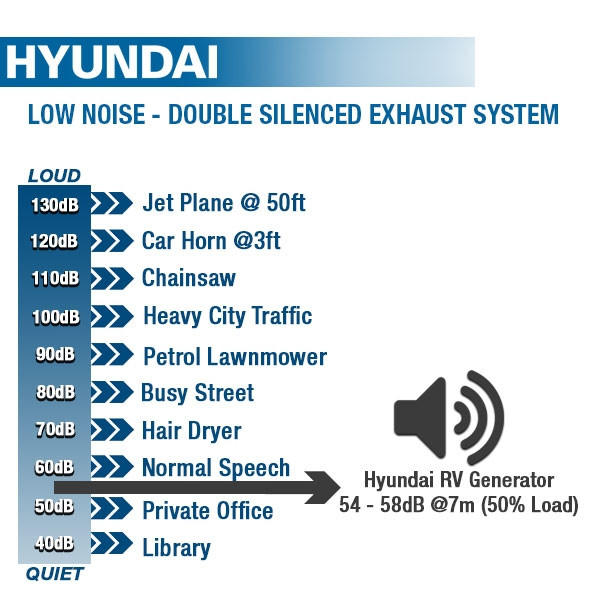

      Low Noise, Low Vibration And Good Fuel Economy

      Designed to offer low noise, low vibration and good fuel economy the HY3500RVi features a triple anti-vibration system, twin silencers, triple fan cooling system and digital inverter technology to reduce engine rpm and noise which increases fuel economy and engine lifespan, whilst delivering a fully overload protected pure sine wave clean power output.

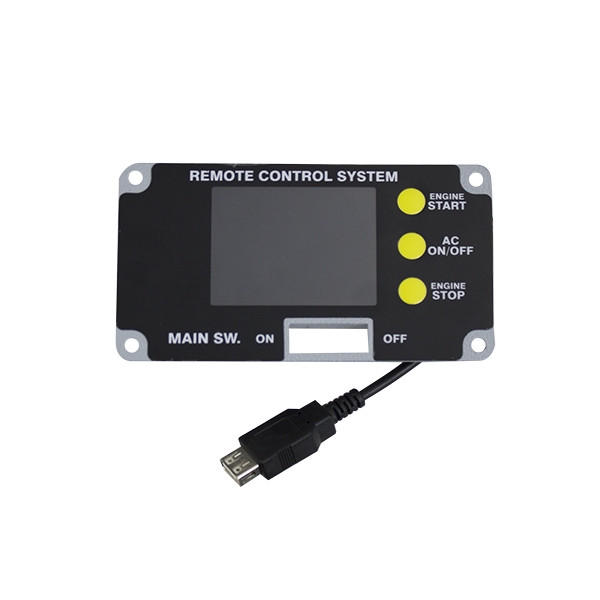

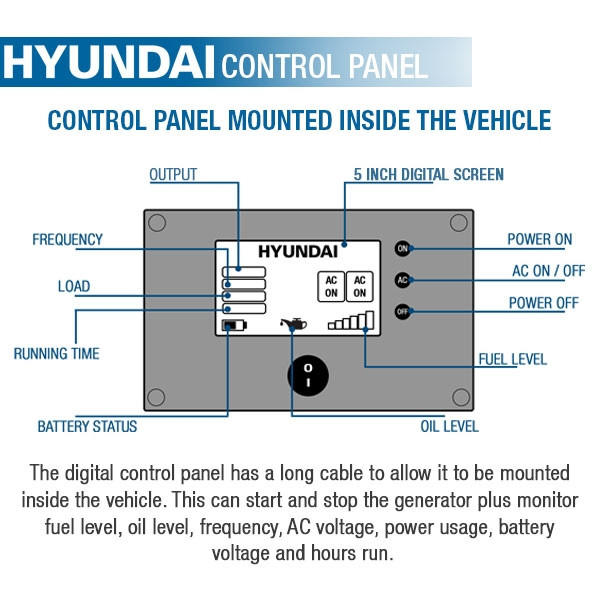

      Digital Control Panel

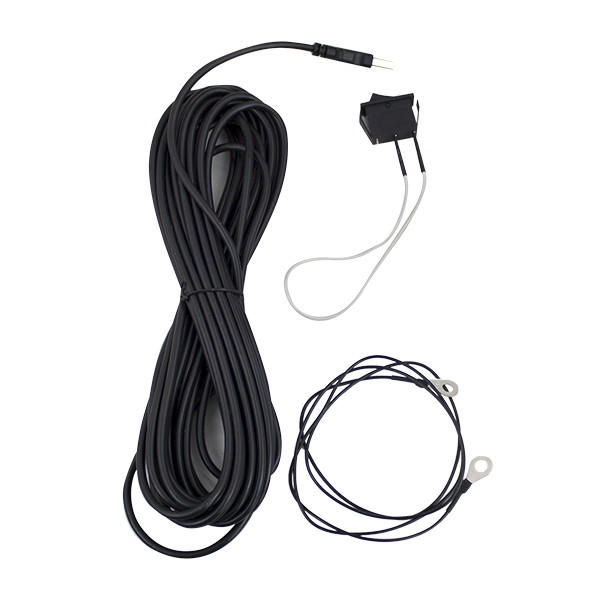

      The digital control panel has a 6m cable to allow it to be mounted inside the vehicle and can start and stop the generator plus monitor fuel level, oil level, frequency, AC voltage, power usage, battery voltage and hours run.

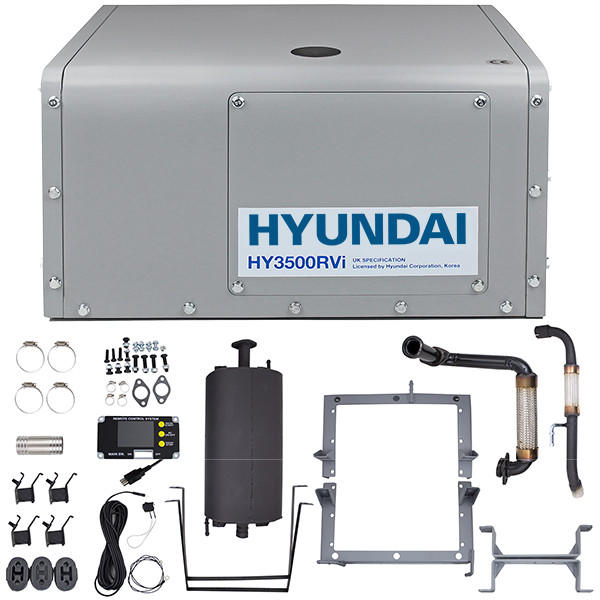

      Included with each generator:

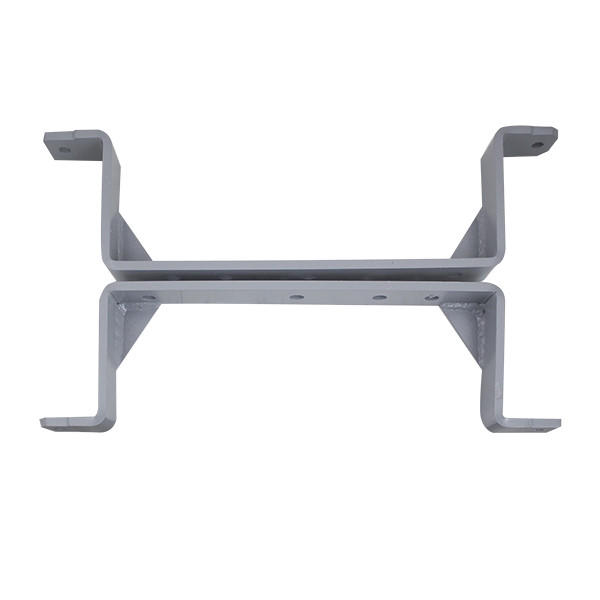

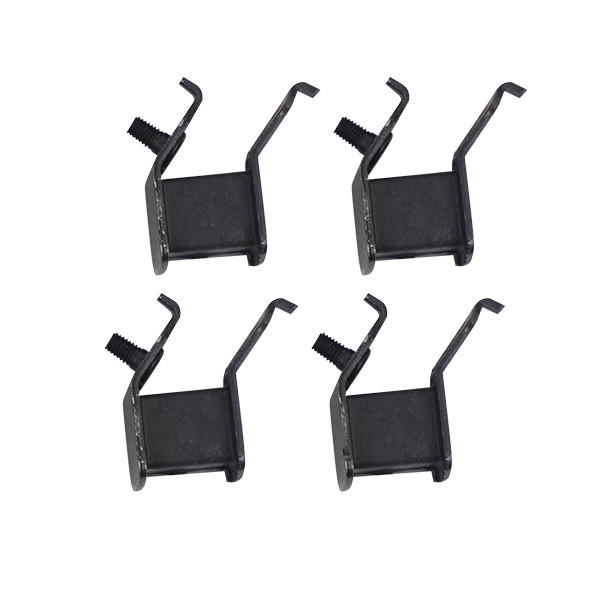

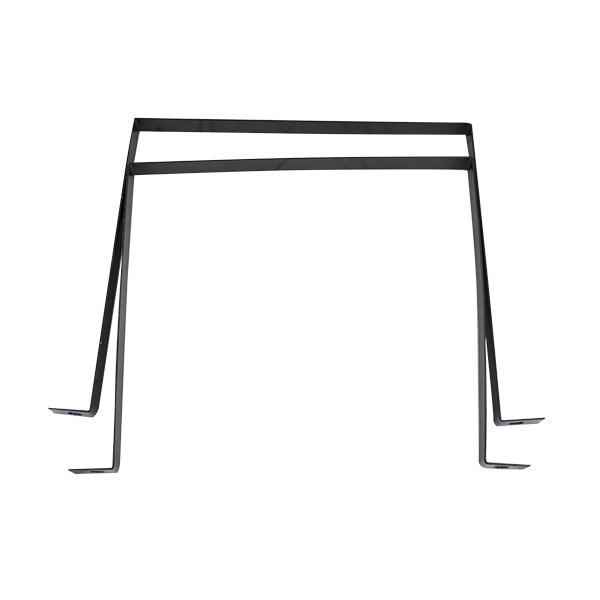

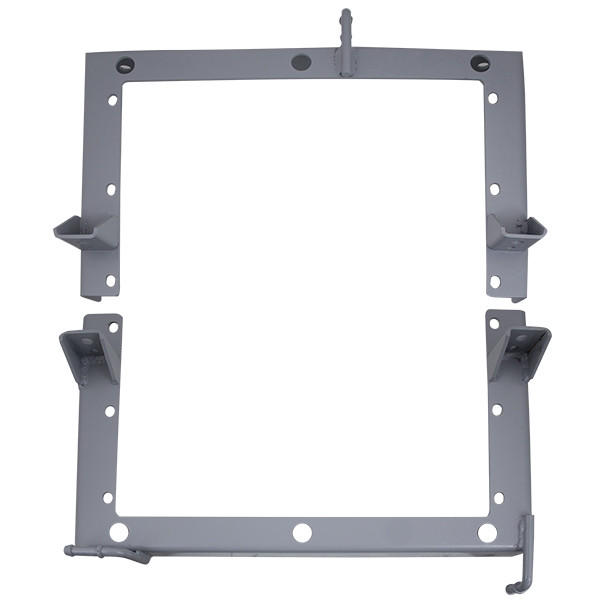

      Choice of either slide out mounting brackets or fixed under chassis mounts, 24L petrol tank includes fuel pump and sender, with mounting brackets and extended fuel filler tube with fittings, 6m cable and digital control panel, external silencer and flexible connecting pipe.

      Engine Oil Included (15w40 / 10w40 grade)

      Warranty

      Covered by the Hyundai two year warranty.

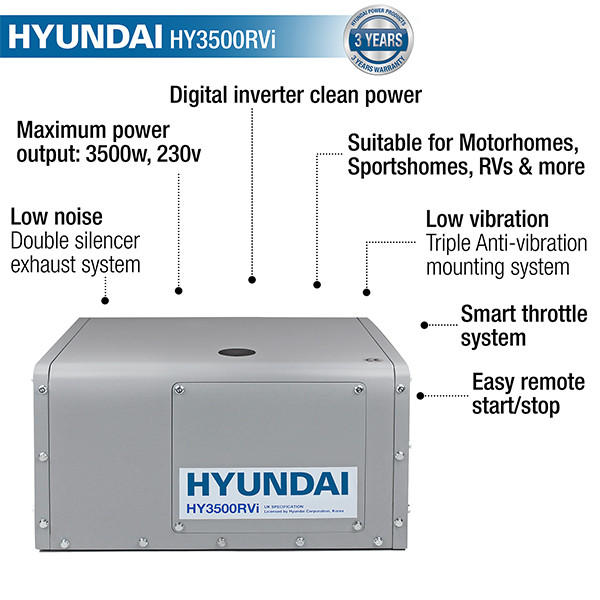

      Key Features
      • Power - Maximum output 3500w, 230v

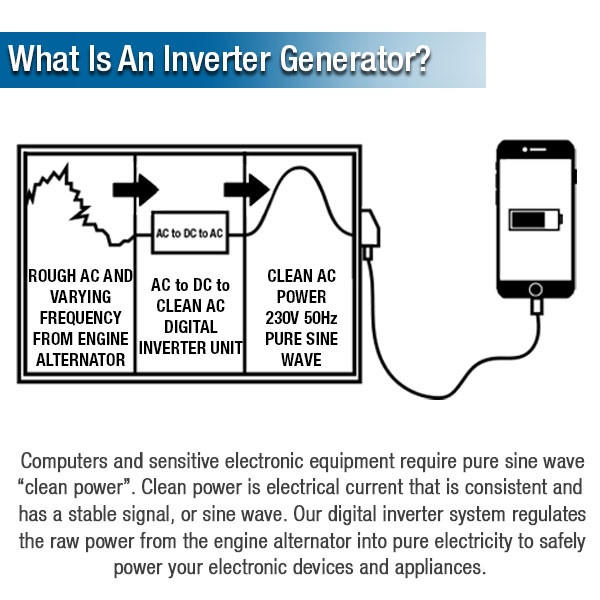

      • Digital inverter clean power
      • Economy - Smart throttle system
      • Easy- Remote start/stop

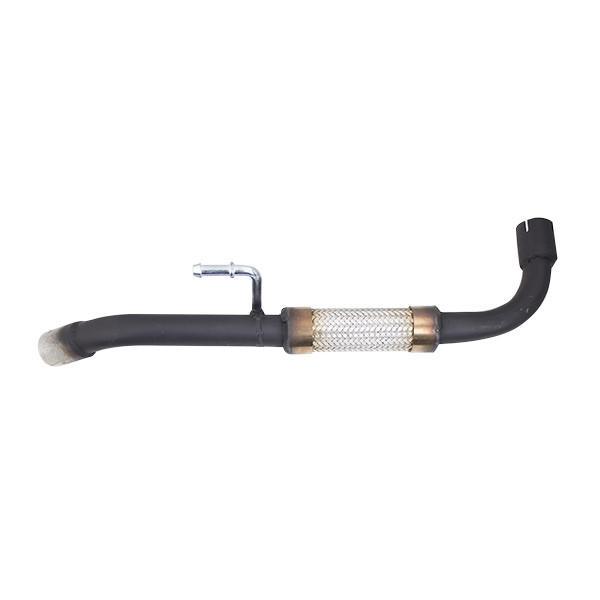

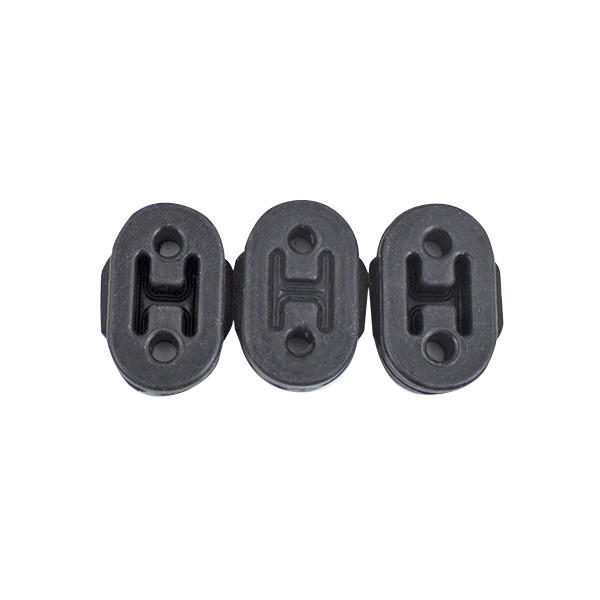

      • Low vibration- Triple Anti-vibration mounting system

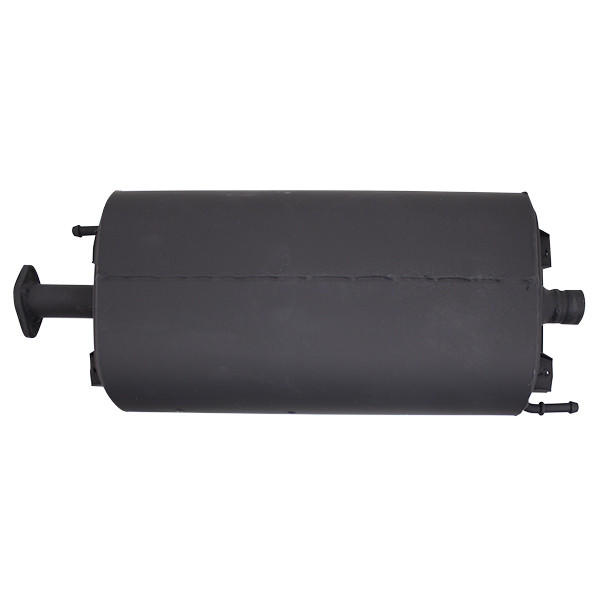

      • Low noise- Double silencer exhaust system
      • Complete kit ready to install
      • Suitable for Motorhomes, Sportshomes, RVs, welfare vehicles, horse lorries, race trucks, service vans etc.
      • Engine oil included (15w40 / 10w40 grade)
      • Full UK spares and technical support

      Specifications

      Model HY3500RVi
      Start Method Electric
      Maximum Output (kW/w) 3.5/3500
      Continuous Output (kW/w) 3/3000
      Fuel Consumption @ 100% load (L/Hr) 2.1
      Fuel Consumption @ 50% load (L/Hr) 1.3
      Voltage Regulation Method Digital Inverter Regulation
      Phase Single
      Voltage 230
      Connection Method(s) Hardwired 230V/13A
      Rated Speed (RPM) 2800 - 3600
      Frequency (Hz) 50
      Max/Continuous Current (Amps) 13 min - 15.2 max
      Power Factor (Cosφ) 0.95
      Engine Model 4-Stroke OHV Air-cooled
      Engine Type 4-Stroke OHV Air-cooled
      Engine Size (cc) 208
      Power Output (hp) 7
      Fuel Capacity (L) 24
      Engine Oil SAE 15W-40
      Engine Oil Capacity (ml) 600
      No. of Cylinders 1
      Casing Closed
      Noise Level db (A) @ 7m 58
      Wheel Kit? No
      Gross Weight (kg) 65
      Net Weight (kg) 46
      Fully Assembled Dimensions (H x W x L) (mm) 545 x 455 x 530
      Package Dimensions (H x W x L) (mm) 730 x 580 x 675
      Fuel/Power Source Petrol
      Product Type RV Leisure Generator
      Warranty (years) 2
      Commercial Warranty (years) 1
      Model EAN 600231974226
      In The Box HY35000RVi, Engine Oil (15w40grade), User Manual, Under-Chassis Mounts, Fuel Tank Mounting Brackets, Extended Fuel Filler Tube With Fittings, 8m Cable and Digital Control Panel, External Silencer, Flexible Connecting Pipe
      Assembly Required? Yes - some assembly may be required
      Pure Sine Wave? Yes


      Document Library

      HY3500RVi Spec Sheet

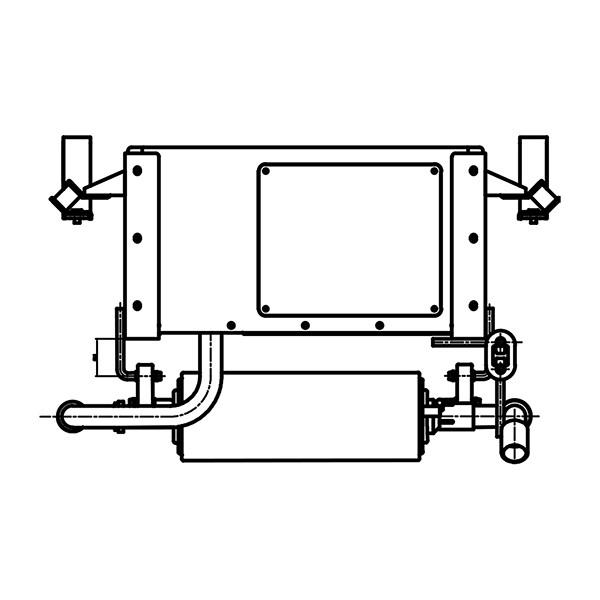

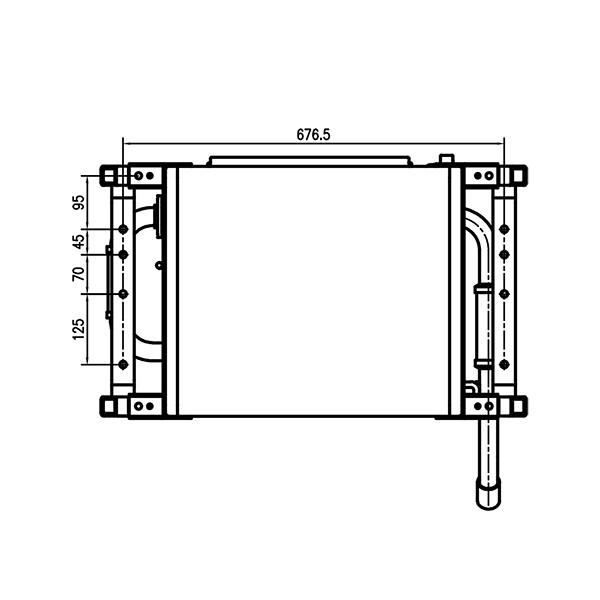

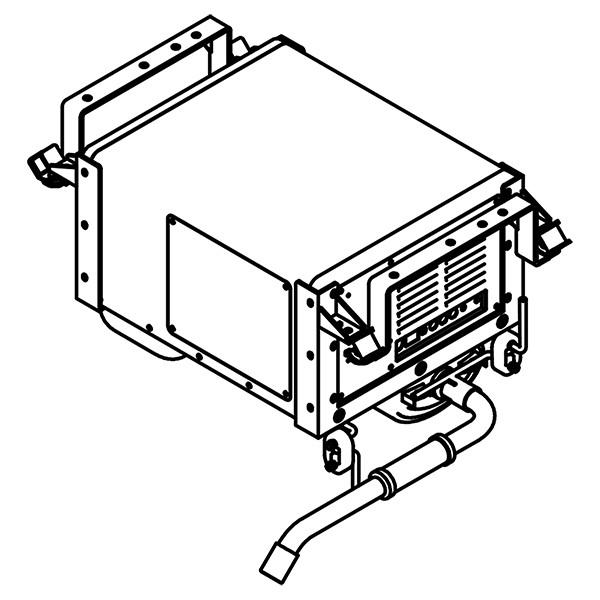

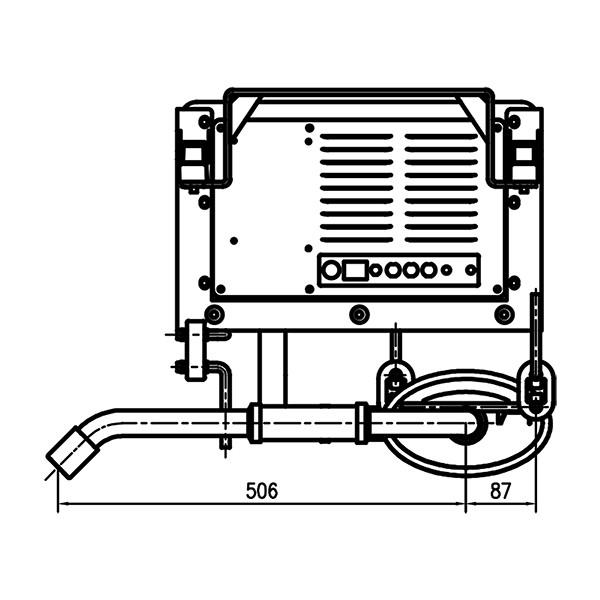

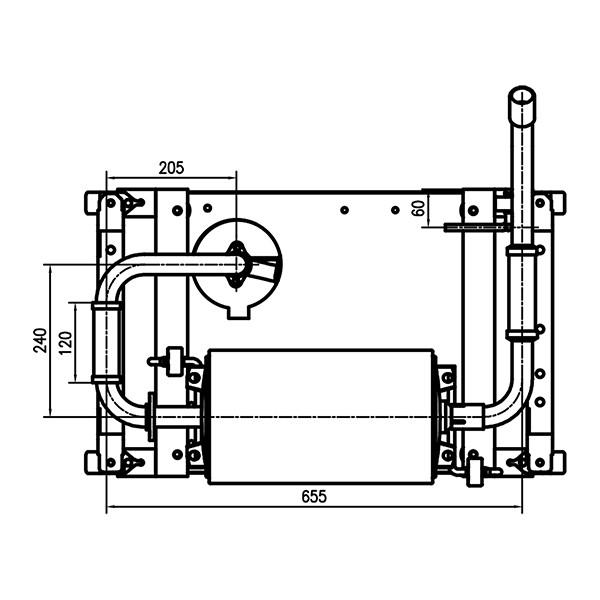

      HY3500RVi Dimensions
      HY3500RVi Manual
      HY3500RVi Generator Circuit Diagram

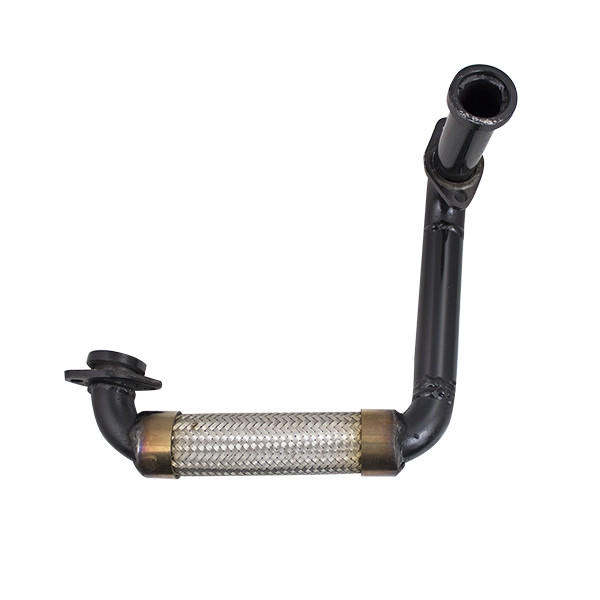

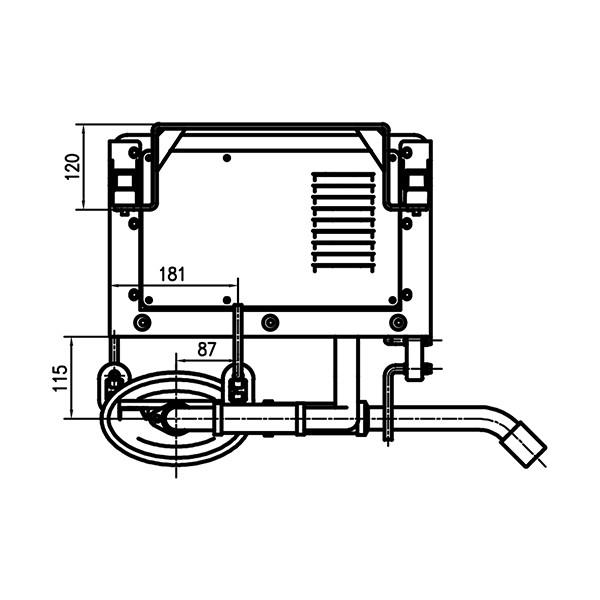

      HY3500RVi and HY8000RVi Exhaust Dimensions
      HY3500RVi Exploded View
