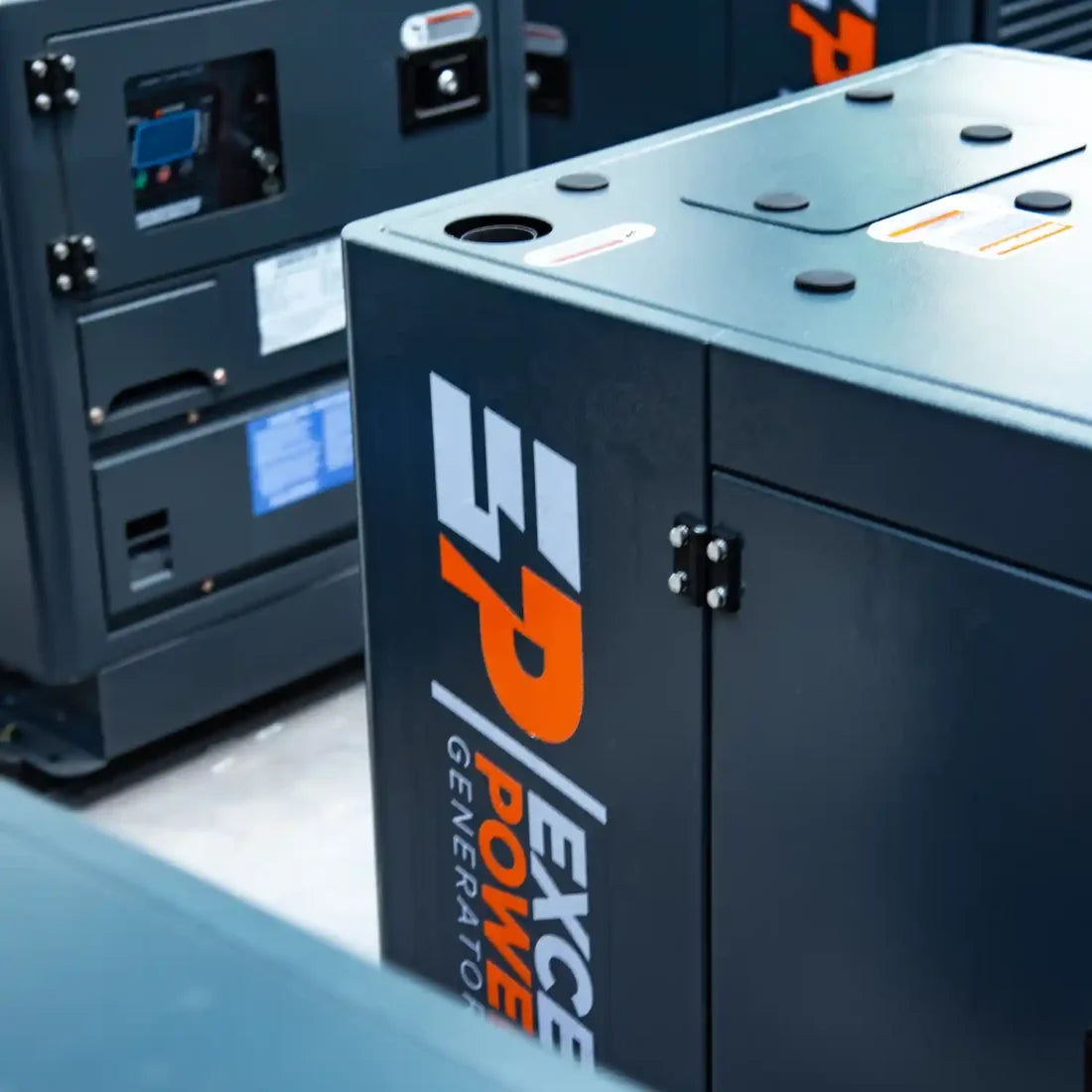

Excel Power XL-DFAW-55 50kVA Three Phase Diesel Generator

£9,238.99
  • Authorised Dealer – We’re officially authorised to sell every brand on our site. That means genuine products and full manufacturer warranties—no exceptions.
  • Free Shipping – Get fast and free shipping on every order, anywhere in the U.K.
  • Top-Rated Customer Support – Need help? Our friendly, U.K.-based team is here to support you before and after your purchase.
  • Operated by the team behind buildthepower.com – trusted by thousands of US customers.

Guaranteed Secure Checkout

      Key Features

      • 50kVA Prime Power / 55kVA Standby Power
      • Three Phase generator 400V / 230V – 50HZ
      • High quality water cooled 1500RPM Fawde diesel engine
      • High quality Depco alternator
      • Deepsea DSE6120 control panel for easy operation
      • Rated at just 72 dB(A) at 7 meters



      The Excel Power XL-DFAW-55 50kVA Three Phase Diesel Generator.




      Excel Power XL-DFAW-55 50kVA Diesel Generator – Reliable Three Phase Standby Power Solution

      The Excel Power XL-DFAW-55 50kVA diesel generator offers steadfast backup energy for critical infrastructure across industrial, commercial, and residential sites. Built as part of the Excel Power Standby Series, this three-phase unit is designed for permanent installation — stepping up when the mains go down to ensure your operations continue smoothly.

      From its high-performance Fawde water-cooled engine to its precision-tuned Depco alternator, the XL-DFAW-55 delivers robust, efficient power in a compact and dependable package.

      🔋 50kVA Diesel Generator for Prime and Emergency Use

      • Prime Output: 50kVA / 40kW – Designed for regular use in remote or off-grid deployments*
      • Standby Output: 55kVA / 44kW – Instantaneous activation during power failures
      • RPM: 1500 – Ensures balanced performance with low fuel consumption and reduced wear

      This 50kVA diesel generator provides reliable energy for essential systems, from IT networks to manufacturing equipment and life-safety devices.

      🛠 Engineered for Endurance and Efficiency

      • Fawde Water-Cooled Diesel Engine – Built to perform under pressure with enhanced thermal control
      • Depco Alternator – Produces stable, distortion-free electricity for sensitive loads
      • Anti-Vibration Mounts – Minimise noise and mechanical stress to extend operating life

      The XL-DFAW-55 is crafted for environments where quiet operation and long-term reliability are non-negotiable.

      🎛 Precision Control with Deepsea DSE6120 Panel

      • Supports automatic and manual operating modes
      • Real-time data on fuel levels, load, and performance metrics
      • Integrated alerts and remote access via USB or network

      Whether onsite or offsite, stay in control of your 50kVA diesel generator with professional-grade monitoring tools.

      Stable Voltage Output via Sealed AVR

      • ±1% voltage regulation protects your systems from harmful fluctuations
      • Fully enclosed AVR resists moisture and dust, maintaining performance over time
      • Ideal for sensitive electronics, IT servers, and digital machinery

      The XL-DFAW-55 is a safe power solution for even the most delicate equipment.

      🔇 Quiet Power with Extended Runtime

      • Low-noise acoustic canopy reduces sound levels to 72 dB(A) at 7 metres
      • 71-litre single skin fuel tank offers long operating cycles between refuels

      This unit is perfect for deployments in sound-conscious environments like housing developments, retail spaces, or healthcare sites.

      🔧 Configure Your Generator to Match Site Needs

      Feature Benefit
      Coolant Heater Ensures reliable starts in cold weather
      Battery Charger Keeps battery charged and ready for action
      Three-Way Fuel Valves Enables seamless switching between fuel sources
      Control Panel Upgrades Expand monitoring and remote access capabilities
      External Fuel Tank Options Extend runtime for longer autonomy
      Ultra-Low Noise Canopy Ideal for noise-restricted zones
      Automatic Transfer Switch (ATS) Enables automatic switchover during outages
      Alternator Auxiliary Winding (AREP) Stabilises voltage during equipment startup

      Specifications

      Generating Set Model:

      • Manufacture Excel Power
      • Model XL-DFAW-55
      • Output rating 50HZ 230V, 1500RPM
      • Prime Power 50kVA / 40kW
      • Standby Power 55kVA / 44kW
      • Noise Level: 72dB(A) at 7m in free field conditions.

      Engine Technical Data:

      • Engine make: FAWDE
      • Engine model: 4DX22-65D
      • Governing type: Electronic
      • Number of cylinders: 4
      • Cylinders arrangement: In-line
      • Bore and stroke: 102 x 118
      • Displacement: 3.86 (L)
      • Aspiration: Turbocharged
      • Cycle: 4-Stroke
      • Compression ratio: 17 : 1
      • Cooling system: Water- Cooling
      • Frequency & engine speed: 50HZ & 1500RPM
      • Gross engine power Prime: 48kW
      • Fuel consumption @ 100% L/hr 12.6

      Alternator Data:

      • Make: DEPCO
      • Model: DPC224D
      • No. of Bearings: 1
      • Insulation Class: H
      • Ingress protection: IP23
      • Excitation system: Shunt
      • Voltage: ±1%

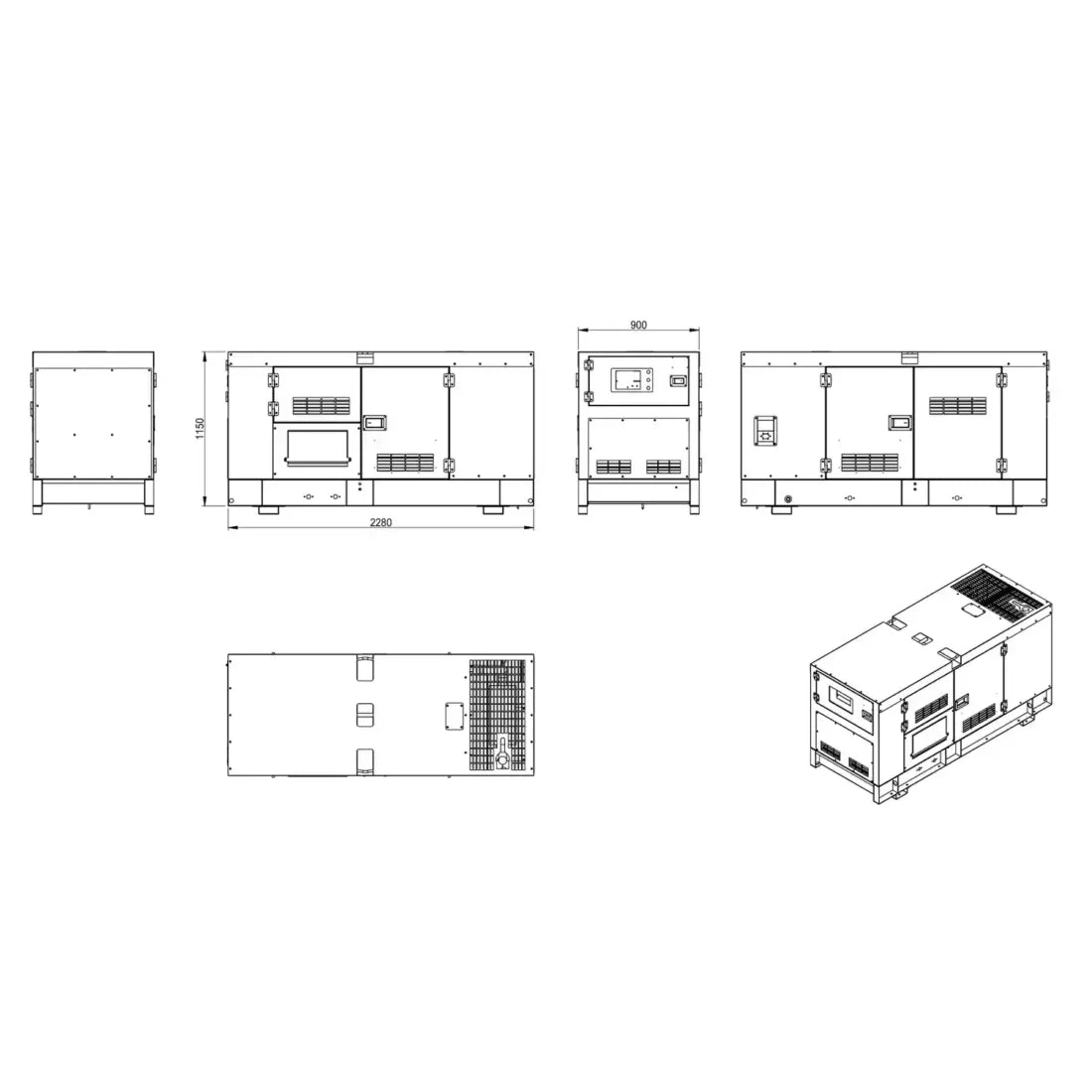

      Dimensions :

      • Length (mm): 2280
      • Width (mm): 900
      • Height (mm): 1150
      • Weight* Kg: 1040
      • Fuel tank capacity: 75 (L)

      Control Panel:

      • Make: Deepsea
      • Model: DSE6120

      Connection Type: :

      • Hard-Wired – optional sockets available

      Document Library
