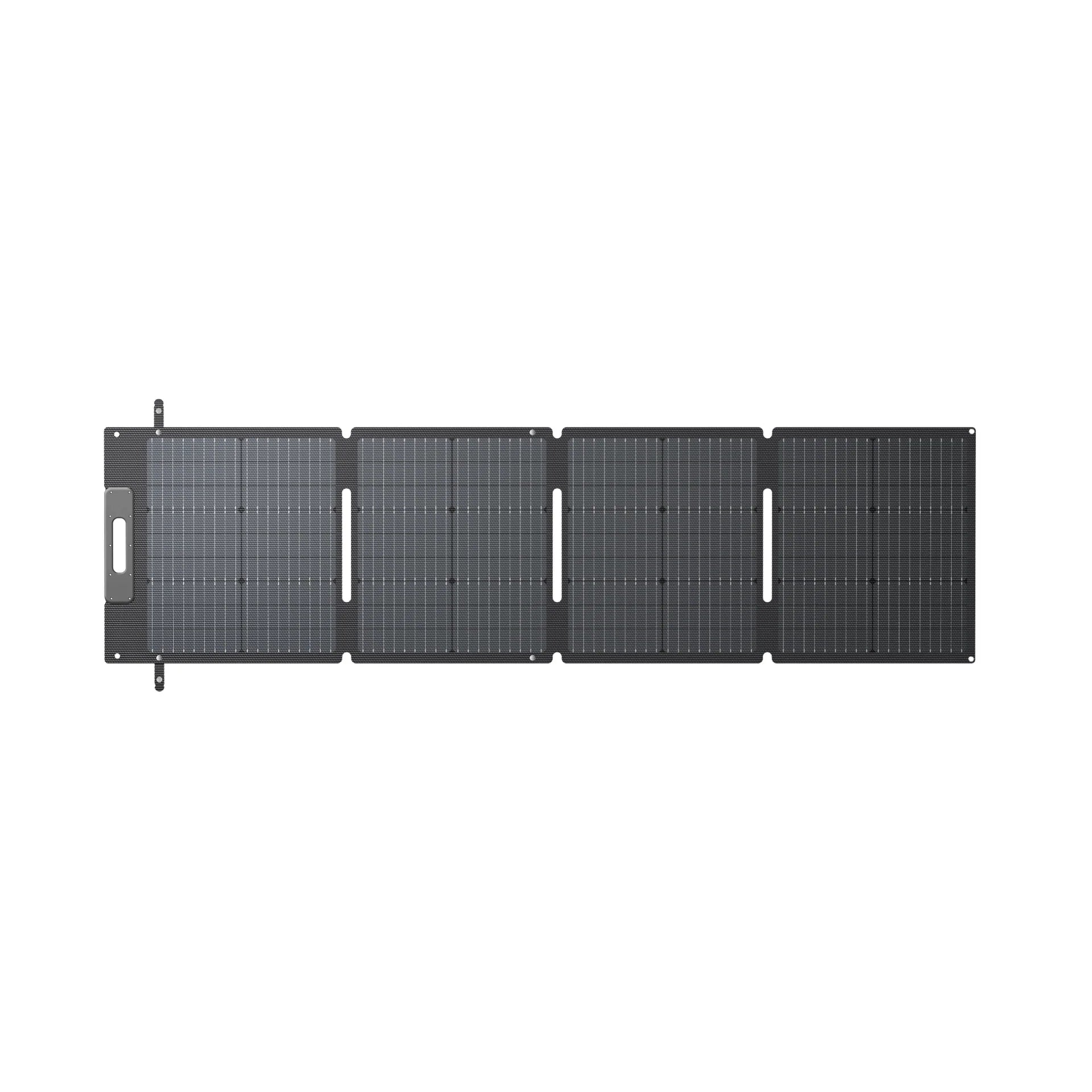

BLUETTI PV120D Solar Panel | 120W



Easy Setup With Kickstand

Unfold the SP120L, snap the kickstands, adjust the angle to maximize the amount of sunlight, and you're ready to harness solar energy for your generators.
(The recharging time refers to 80% of power level being charged*)
BLUETTI EB55 (537Wh) + SP120L: Charge in as soon as 5 hours
BLUETTI AC200P (2,000Wh) + 2* SP120L: Charge in as soon as 8.5 hours
BLUETTI AC200MAX (2,048Wh) + 4* SP120L: Charge in as soon as 4.5 hours
BLUETTI AC300 + B300 (3,072Wh) + 8* SP120L: Charge in as soon as 3.5 hours
BLUETTI EP500Pro (5,100Wh) + 6* SP120L: Charge in as soon as 7.5 hours

Portable in Every Way



Specifications

POWER

Power:

120W

Lamination:

ETFE (Ethylene tetrafluoroethylene)

Cell Type:

Monocrystalline Silicon

Cell Efficiency:

Up to 23.4%

Voltage at Max Power(Vmp):

20.52V

Current at Max Power(Imp):

5.85A

Open Circuit Voltage(OCV):

24.62V

Short Circuit Current(Isc):

6.14A

GENERAL

Connector:

Standard MC4 Connector

Weight:

11.2Ibs / 5.1Kg

Dimensions (Unfolded):

18.5*68.2in* / 471*1734mm

Dimensions (Folded):

19.4*18.5*2.9in / 494*471*75mm

Operating Temperature::

14-149℉ (-10℃～+65℃)

Best Working Temperature:

77℉ (25℃)

Cable Length:

118in (3m)

Warranty:

12 Months

Certifications:

CE, ROHS, PSE, FCC, UKCA
